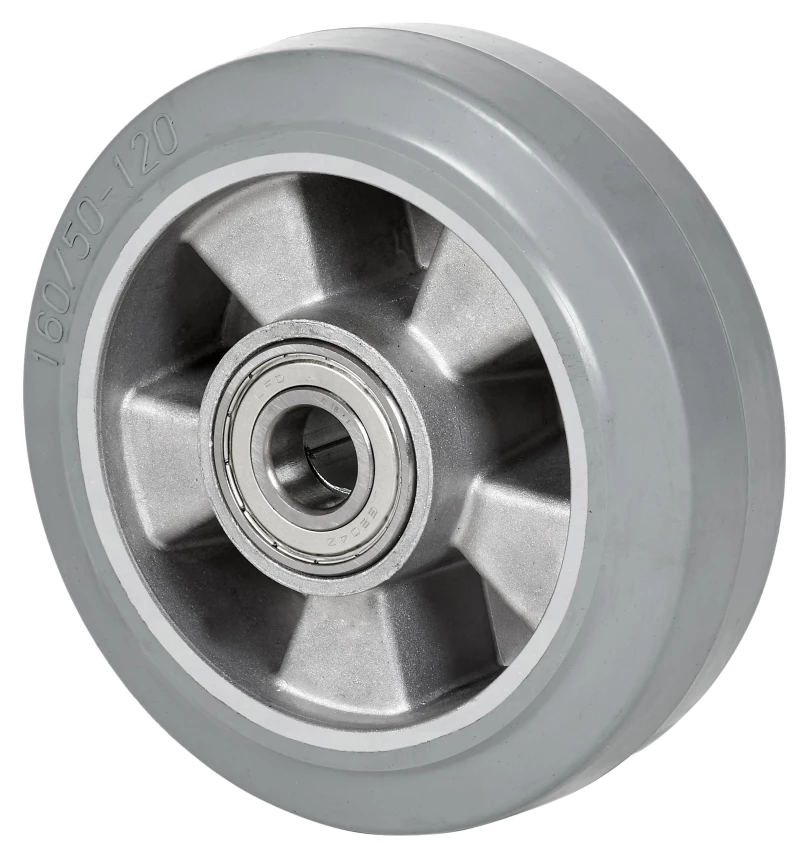

Code: 4-1659

Perfect for medium duty loads' manual movement. Noiseless.

Non-marking.

High absorption to impacts and vibrations.

Maximum equipment and floor protection.

Perfect for uneven surfaces.

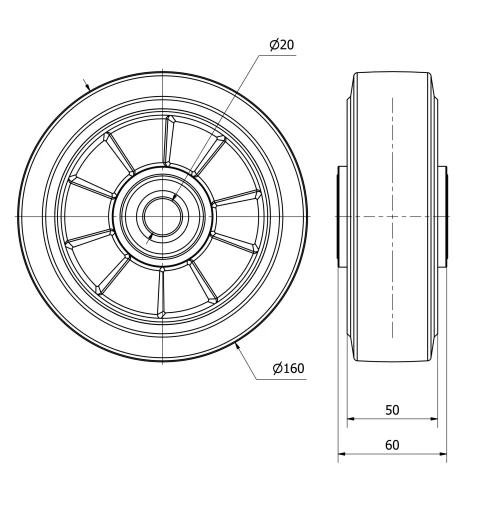

Technical Data 4-1659

EAN:
8422202416595
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
70
Hardness of tread:
70º SHORE A
Bearing:
Ball
Color:
Gray
Diameter (mm):
160
Width of tyre (mm):
50
Axle Hole:
20
Lenght Of Hub:
60
Load:
350
Unit Weight of the wheel (kg):
1200
Volume (cm3):
1536
Technical Data 4-1659
