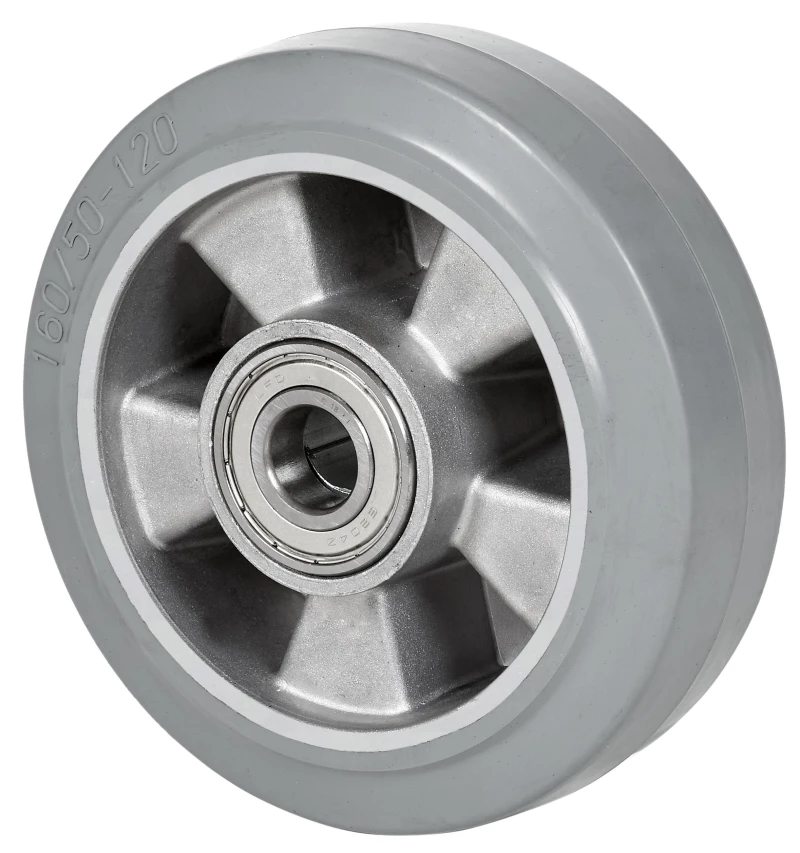

Code: 4-1673

Perfect for medium duty loads' manual movement. Noiseless.

Non-marking.

High absorption to impacts and vibrations.

Maximum equipment and floor protection.

Perfect for uneven surfaces.

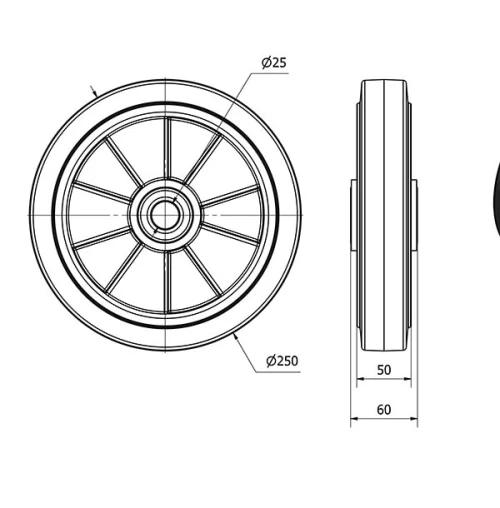

Technical Data 4-1673

EAN:
8422202416731
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
70
Hardness of tread:
70º SHORE A
Bearing:
Ball
Color:
Gray
Diameter (mm):
250
Width of tyre (mm):
50
Axle Hole:
25
Lenght Of Hub:
60
Load:
450
Volume (cm3):
3750
Technical Data 4-1673

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
