Which castors do you need?

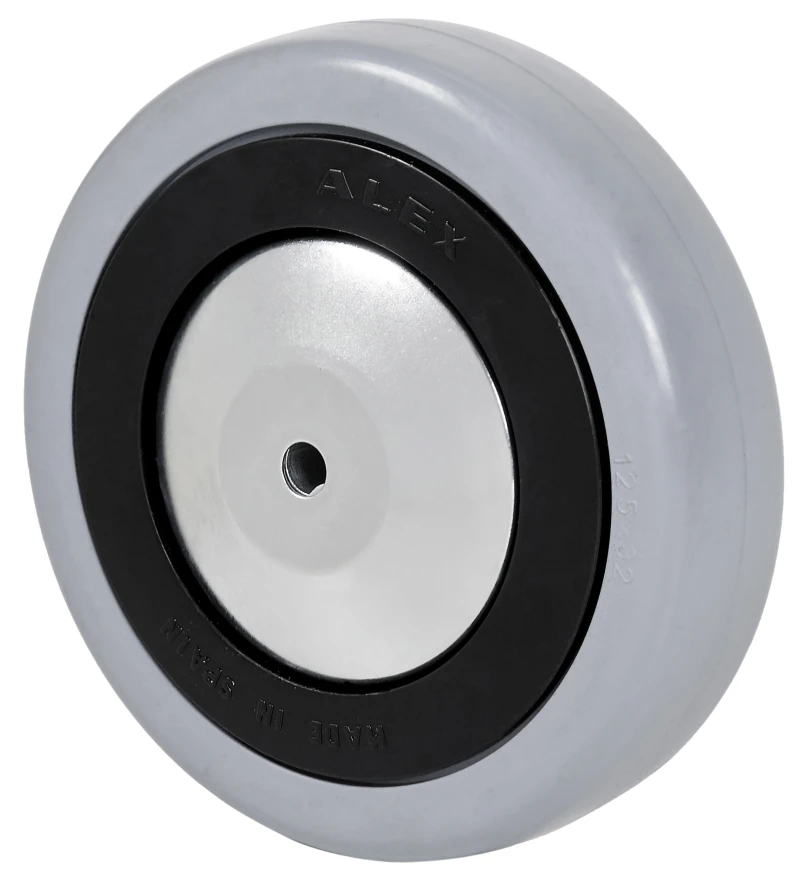

Wheel PGA 2-0790
EAN 8422202207902
Smooth and noiseless castor.
Does not leave marks on floor.

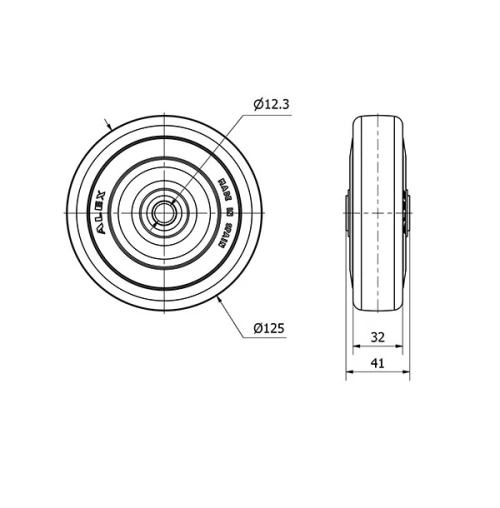

Technical Data
Housing Type | Loose ring |
---|---|
Material | Rubber |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 60 |
Bearing | Plain |
Color | Gray |
Diameter (mm) | 125 |
Width of tyre (mm) | 32 |
Axle Hole | 12 |
Lenght Of Hub | 40 |
Load | 135 |
Unit Weight of the wheel (kg) | 0.37 |
Volume (cm3) | 422 |
Threadguards | 2-8809 |
