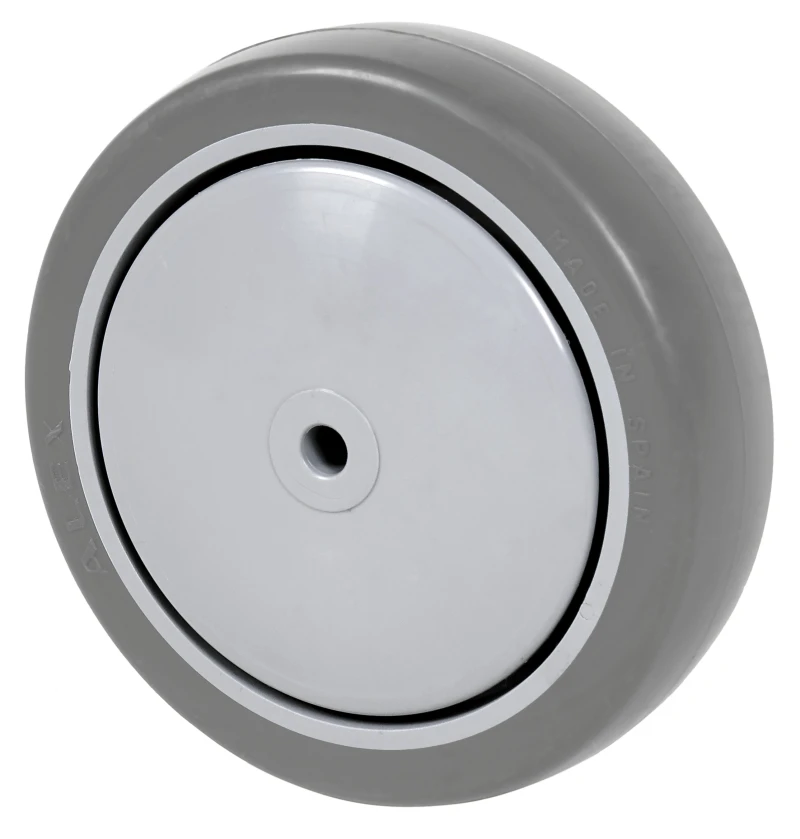

Wheel PGAIB 2-3577
EAN 8422202235776
Noiseless and absorbs vibrations.
Does not leave marks on floor. Easy to move.

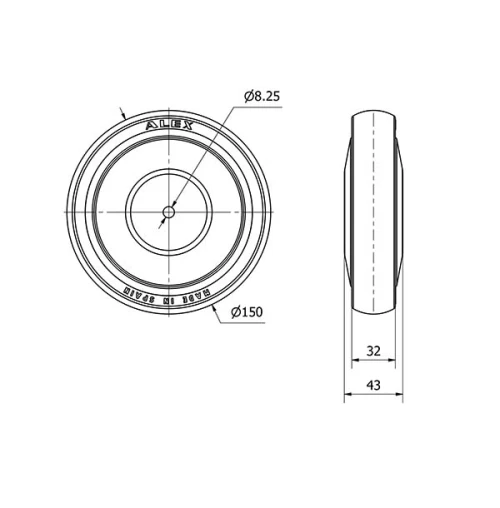

Technical Data
Housing Type | Loose ring |
---|---|
Material | Rubber |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 60 |
Bearing | Ball |
Color | Gray |
Diameter (mm) | 150 |
Width of tyre (mm) | 32 |
Axle Hole | 8 |
Lenght Of Hub | 43 |
Load | 100 |
Unit Weight of the wheel (kg) | 0.42 |
Volume (cm3) | 968 |
Threadguards | Included |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
