Code: 2-3398

Smooth and noiseless castor.

High floor protection.

Absorption to impacts and vibrations.

Does noet leave marks on floor.

Technical Data 2-3398

EAN:
8422202233987
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
80-85º SHORE A
Bearing:
Roller
Color:
Gray
Diameter (mm):
160
Width of tyre (mm):
40
Axle Hole:
20
Lenght Of Hub:
60
Load:
160
Unit Weight of the wheel (kg):
0,836
Volume (cm3):
1536

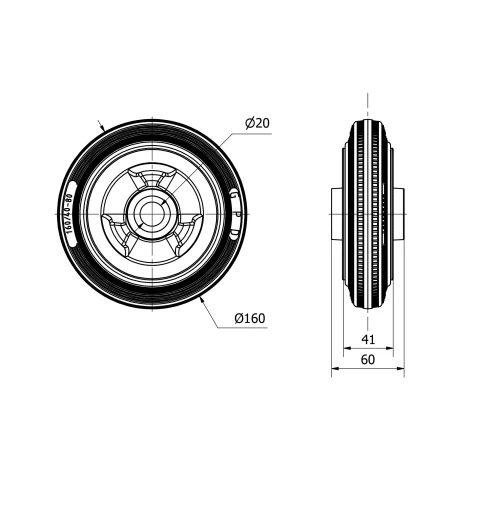

Technical Data 2-3398

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
