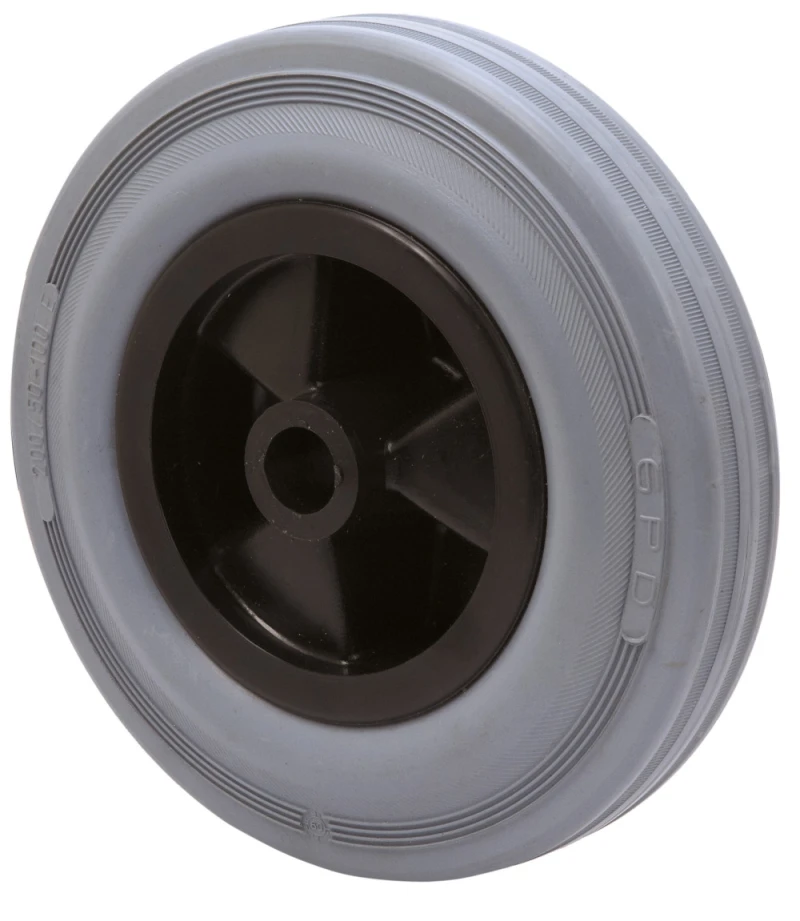

Grey PS Wheel 2-3395

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 2-3395

Smooth and noiseless castor.

High floor protection.

Absorption to impacts and vibrations.

Does noet leave marks on floor.

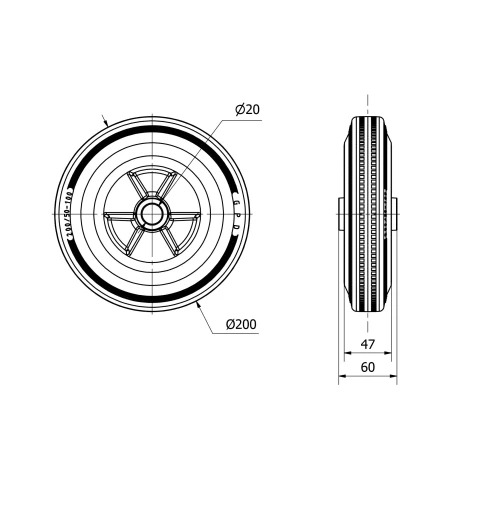

Technical Data 2-3395

EAN:
8422202233956
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
80-85º SHORE A
Bearing:
Plain
Color:
Gray
Diameter (mm):
200
Width of tyre (mm):
47
Axle Hole:
20
Lenght Of Hub:
60
Load:
215
Unit Weight of the wheel (kg):
1,46
Volume (cm3):
2400
Threadguards:
2-1250
