Which castors do you need?

Wheel PGZ 2-3148

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 2-3148

Does not leave marks on floor.

Easy to move with load.

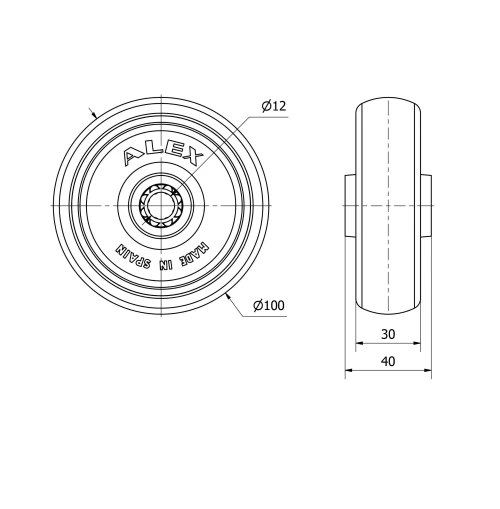

Technical Data 2-3148

EAN:
8422202231488
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
80
Hardness of tread:
90º SHORE A
Bearing:
Roller
Color:
Gray
Diameter (mm):
100
Width of tyre (mm):
30
Axle Hole:
12
Lenght Of Hub:
40
Load:
100
Unit Weight of the wheel (kg):
0,138
Threadguards:
2-0822
Technical Data 2-3148

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
