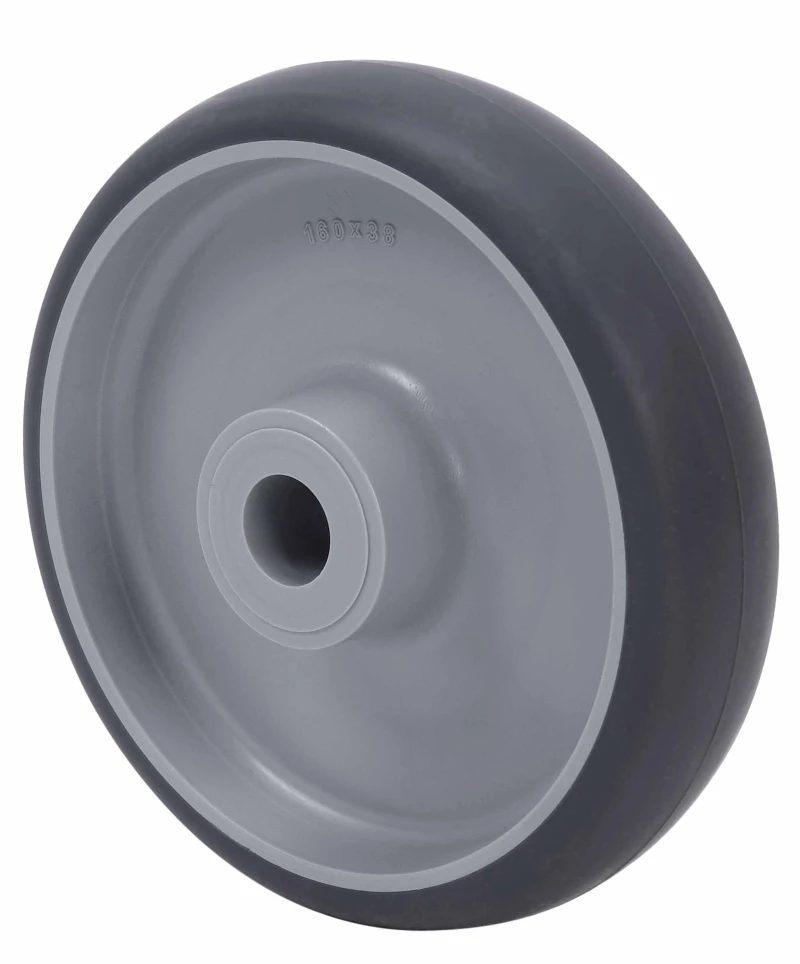

Wheel PGZ 2-3312

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 2-3312

Does not leave marks on floor.

Easy to move with load.

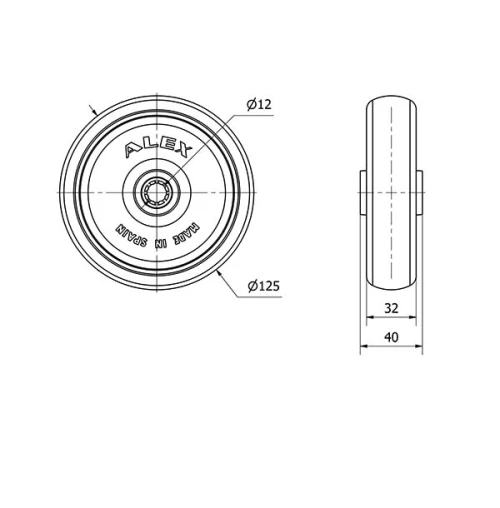

Technical Data 2-3312

EAN:
8422202233123
Housing Type:
Loose ring
Material:
Rubber
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
80
Hardness of tread:
90º SHORE A
Bearing:
Stainless Steel Roller Bearing
Color:
Gray
Diameter (mm):
125
Width of tyre (mm):
32
Axle Hole:
12
Lenght Of Hub:
40
Load:
120
Unit Weight of the wheel (kg):
0,195
Threadguards:
2.0815
Technical Data 2-3312
