Which castors do you need?

Wheel PGC 2-1603

See comparative

Code: 2-1603

Does not leave marks on floor.

Smooth and noiseless castor.

Conductive.

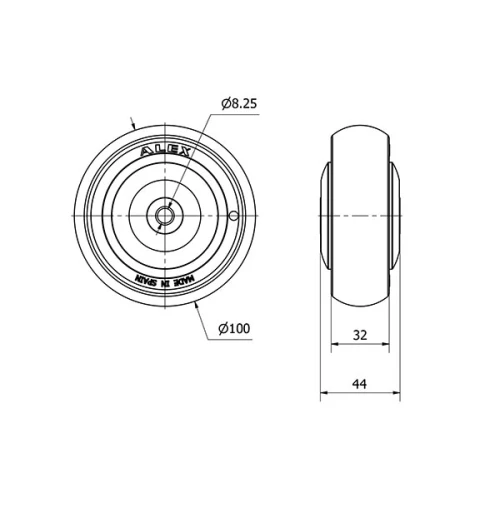

Technical Data 2-1603

EAN:

8422202216034

Housing Type:

Loose ring

Material:

Polyurethane

Low Temperature (ºC):

-25

Maximum Temperature (ºC):

80

Hardness of tread:

95º SHORE A

Bearing:

Ball

Color:

Gray

Diameter (mm):

100

Width of tyre (mm):

32

Axle Hole:

8

Lenght Of Hub:

43

Load:

100

Unit Weight of the wheel (kg):

0,273

Volume (cm³):

400

Threadguards:

Incluidos

Technical Data 2-1603

Private area

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
