Wheel PO 2-1443

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 2-1443

Elastic and noiseless functioning.

High floor protection.

Noiseless.

Long useful life.

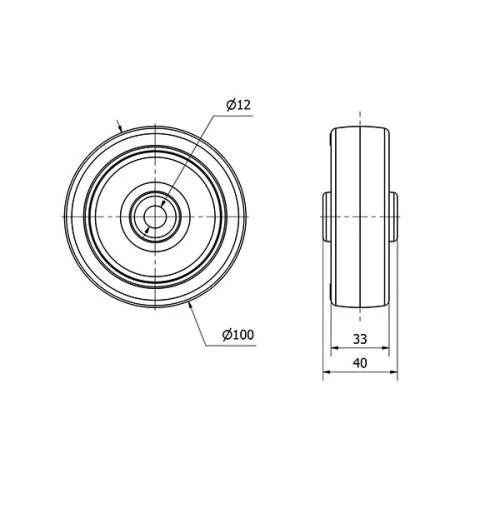

Technical Data 2-1443

EAN:
8422202214436
Housing Type:
Loose ring
Material:
Polyurethane
Low Temperature (ºC):
-25
Maximum Temperature (ºC):
80
Hardness of tread:
60º SHORE D
Bearing:
Plain
Color:
Red
Diameter (mm):
100
Width of tyre (mm):
33
Axle Hole:
12
Lenght Of Hub:
40
Load:
200
Unit Weight of the wheel (kg):
0,2
Volume (cm3):
400
Threadguards:
2-0822
Technical Data 2-1443
