Which castors do you need?
Wheel PO 4-0486
EAN 8422202404868
Elastic and noiseless functioning.
High floor protection.
Noiseless.
Long useful life.

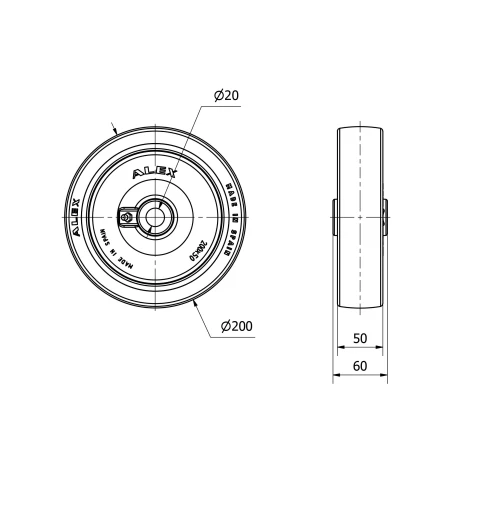

Technical Data
Housing Type | Loose ring |
---|---|
Material | Polyurethane |
Low Temperature (ºC) | -25 |
Maximum Temperature (ºC) | 80 |
Hardness of tread | 90-95º SHORE A |
Bearing | Plain |
Color | Red |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Axle Hole | 20 |
Lenght Of Hub | 60 |
Load | 600 |
Unit Weight of the wheel (kg) | 1.069 |
Volume (cm3) | 2400 |
Threadguards | 4-1582 |
