Wheel POL 2-2483

Code: 2-2483

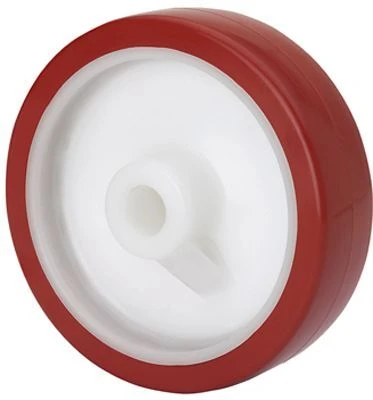

Injection-moulded polyurethane wheels. Polypropylene centre, nylon centre, plastic centre, polyamide centre. Red polyurethane tyre, brown polyurethane tyre, blue soft polyurethane tyre, antistatic grey polyurethane tyre. Wheel Bearings: plain bearing, roller bearing, ball bearing. Temperature range: -20º C to +80º C.

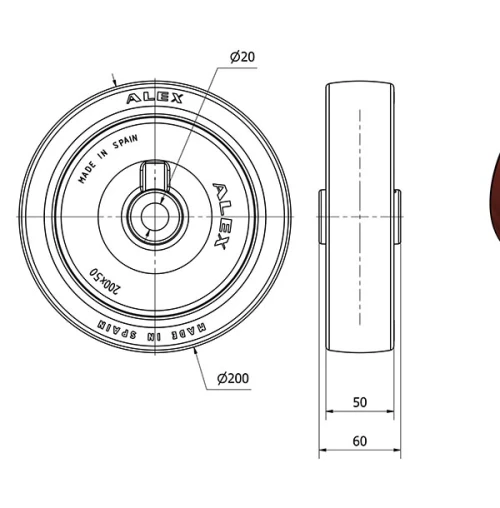

Technical Data 2-2483

EAN:

8422202224831

Housing Type:

Loose ring

Material:

Polyurethane

Low Temperature (ºC):

-25

Maximum Temperature (ºC):

Hardness of tread:

95º SHORE A

Bearing:

Plain

Color:

Brown

Diameter (mm):

200

Width of tyre (mm):

Axle Hole:

Lenght Of Hub:

Load:

400

Unit Weight of the wheel (kg):

0,925

Volume (cm³):

2400

Threadguards:

4-1582

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
