Wheel POL 2-2961
EAN 8422202229614
Injection-moulded polyurethane wheels. Polypropylene centre, nylon centre, plastic centre, polyamide centre. Red polyurethane tyre, brown polyurethane tyre, blue soft polyurethane tyre, antistatic grey polyurethane tyre. Wheel Bearings: plain bearing, roller bearing, ball bearing. Temperature range: -20º C to +80º C.

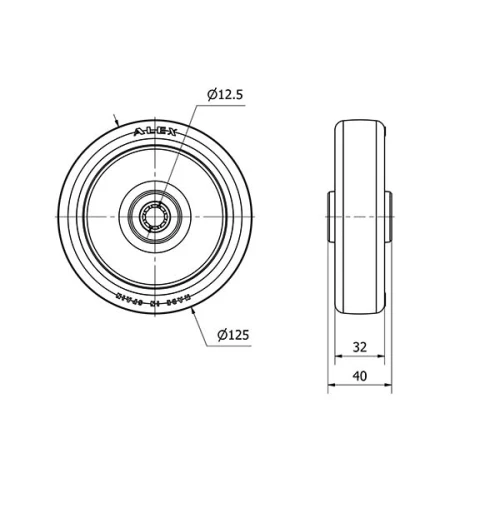

Technical Data
Housing Type | Loose ring |
---|---|
Material | Polyurethane |
Low Temperature (ºC) | -25 |
Maximum Temperature (ºC) | 80 |
Hardness of tread | 95º SHORE A |
Bearing | Roller |
Color | Brown |
Diameter (mm) | 125 |
Width of tyre (mm) | 32 |
Axle Hole | 12 |
Lenght Of Hub | 40 |
Load | 200 |
Unit Weight of the wheel (kg) | 0.27 |
Volume (cm3) | 625 |
Threadguards | 2-4485 |
