Which castors do you need?
Wheel PPI 2-2521
EAN 8422202225210
Noiseless and undeformable.
Easy to move with load.

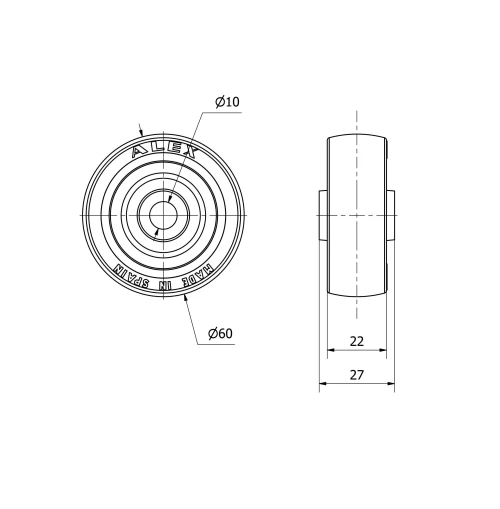

Technical Data
Housing Type | Loose ring |
---|---|
Material | Polyurethane |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 60 |
Bearing | Plain |
Color | Red |
Diameter (mm) | 60 |
Width of tyre (mm) | 22 |
Axle Hole | 10 |
Lenght Of Hub | 27 |
Load | 70 |
Unit Weight of the wheel (kg) | 0.049 |
Volume (cm3) | 97 |
Threadguards | 2-1563 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
