Code: 2-3448

Noiseless.

Clean and elastic.

Long useful life.

High resistance to oils and grease.

Silent running and vibrations absorption.

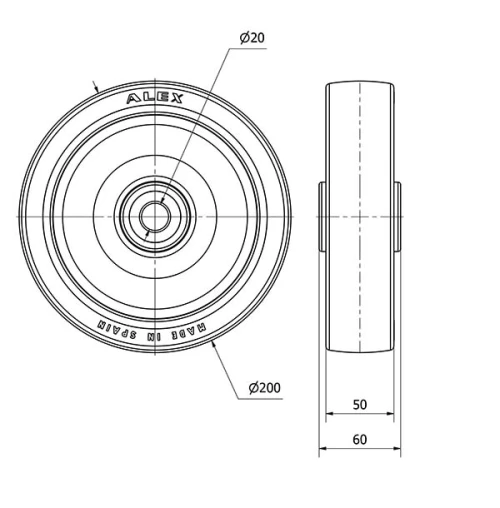

Technical Data 2-3448

EAN:
8422202234489
Housing Type:
Loose ring
Material:
Polyurethane
Low Temperature (ºC):
-25
Maximum Temperature (ºC):
80
Hardness of tread:
80º SHORE A
Bearing:
Stainless Steel Roller Bearing
Color:
Blue
Diameter (mm):
200
Width of tyre (mm):
50
Axle Hole:
20
Lenght Of Hub:
60
Load:
300
Unit Weight of the wheel (kg):
1
Volume (cm3):
2400
Technical Data 2-3448

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
