Which castors do you need?
Wheel PUA 2-3508
EAN 8422202235080
Noiseless.
Elastic.
Does not leave marks on floor.
Easy to move.

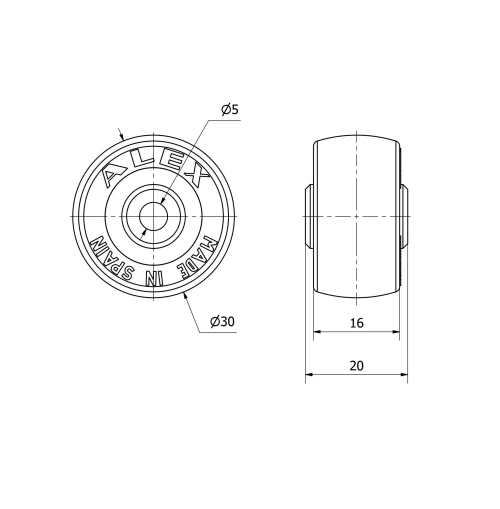

Technical Data
Housing Type | Loose ring |
---|---|
Material | Polyurethane |
Low Temperature (ºC) | -25 |
Maximum Temperature (ºC) | 80 |
Bearing | Plain |
Color | Blue |
Diameter (mm) | 30 |
Width of tyre (mm) | 16 |
Axle Hole | 5 |
Lenght Of Hub | 20 |
Load | 15 |
Unit Weight of the wheel (kg) | 0.011 |
Volume (cm3) | 18 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
