Which castors do you need?

Wheel PUA 2-3509

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 2-3509

Noiseless.

Elastic.

Does not leave marks on floor.

Easy to move.

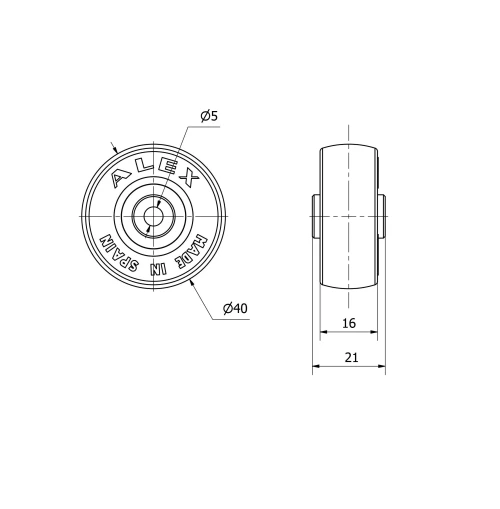

Technical Data 2-3509

EAN:
8422202235097
Housing Type:
Loose ring
Material:
Polyurethane
Low Temperature (ºC):
20
Maximum Temperature (ºC):
60
Hardness of tread:
80º SHORE A
Bearing:
Plain
Color:
Blue
Diameter (mm):
40
Width of tyre (mm):
16
Axle Hole:
5
Lenght Of Hub:
21
Load:
17
Unit Weight of the wheel (kg):
0,021
Volume (cm3):
34
Technical Data 2-3509
