Code: 2-0343

Elastic and noiseless functioning.

High floor protection.

Noiseless.

Long useful life.

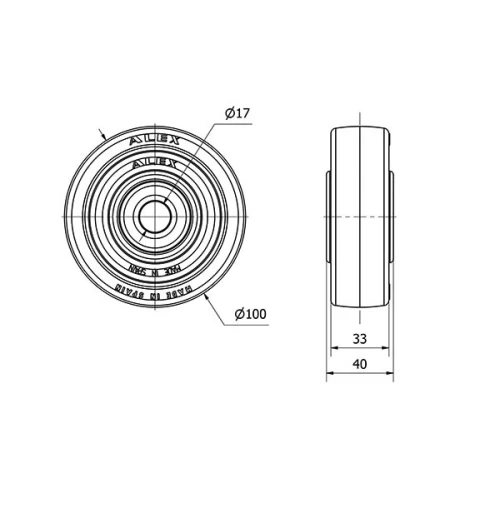

Technical Data 2-0343

EAN:
8422202203430
Housing Type:
Loose ring
Material:
Polyurethane
Low Temperature (ºC):
-25
Maximum Temperature (ºC):
80
Hardness of tread:
60º SHORE D
Bearing:
Stainless Steel Balls
Color:
Red
Diameter (mm):
100
Width of tyre (mm):
33
Axle Hole:
17
Lenght Of Hub:
40
Load:
200
Unit Weight of the wheel (kg):
0,347
Volume (cm3):
400
Threadguards:
2-0822
Technical Data 2-0343
