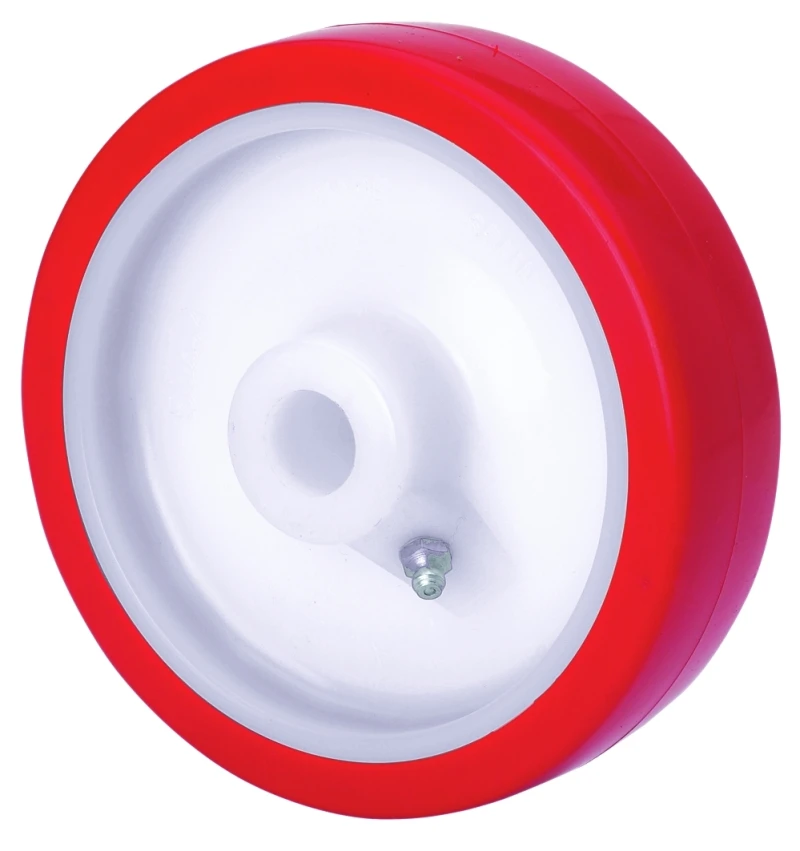

Wheel PO 2-5176

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 2-5176

Elastic and noiseless functioning.

High floor protection.

Noiseless.

Long useful life.

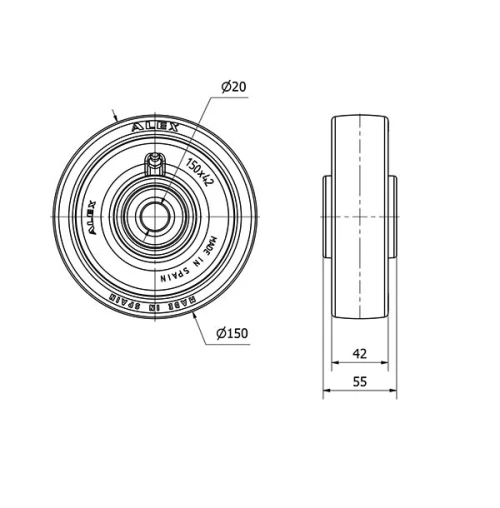

Technical Data 2-5176

EAN:
8422202251769
Housing Type:
Loose ring
Material:
Polyurethane
Low Temperature (ºC):
-25
Maximum Temperature (ºC):
80
Hardness of tread:
60º SHORE D
Bearing:
Stainless Steel Balls
Color:
Red
Diameter (mm):
150
Width of tyre (mm):
42
Axle Hole:
20
Lenght Of Hub:
55
Load:
450
Unit Weight of the wheel (kg):
0,73
Volume (cm3):
1170
Technical Data 2-5176
