Code: 2-5177

Elastic and noiseless functioning.

High floor protection.

Noiseless.

Long useful life.

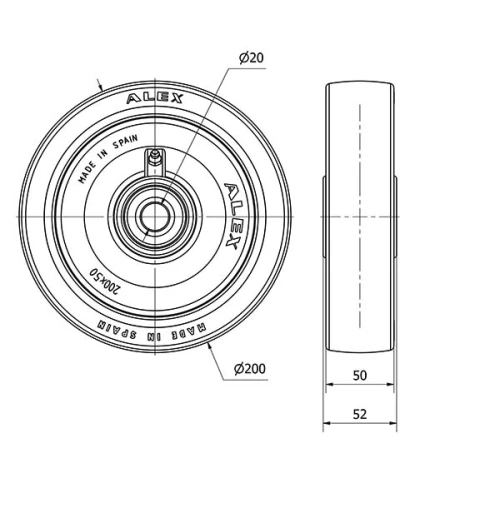

Technical Data 2-5177

EAN:
8422202251776
Housing Type:
Loose ring
Material:
Polyurethane
Low Temperature (ºC):
-25
Maximum Temperature (ºC):
80
Hardness of tread:
60º SHORE D
Bearing:
Stainless Steel Balls
Color:
Red
Diameter (mm):
200
Width of tyre (mm):
50
Axle Hole:
20
Lenght Of Hub:
52
Load:
600
Unit Weight of the wheel (kg):
1,394
Volume (cm3):
2400
Technical Data 2-5177
