Which castors do you need?

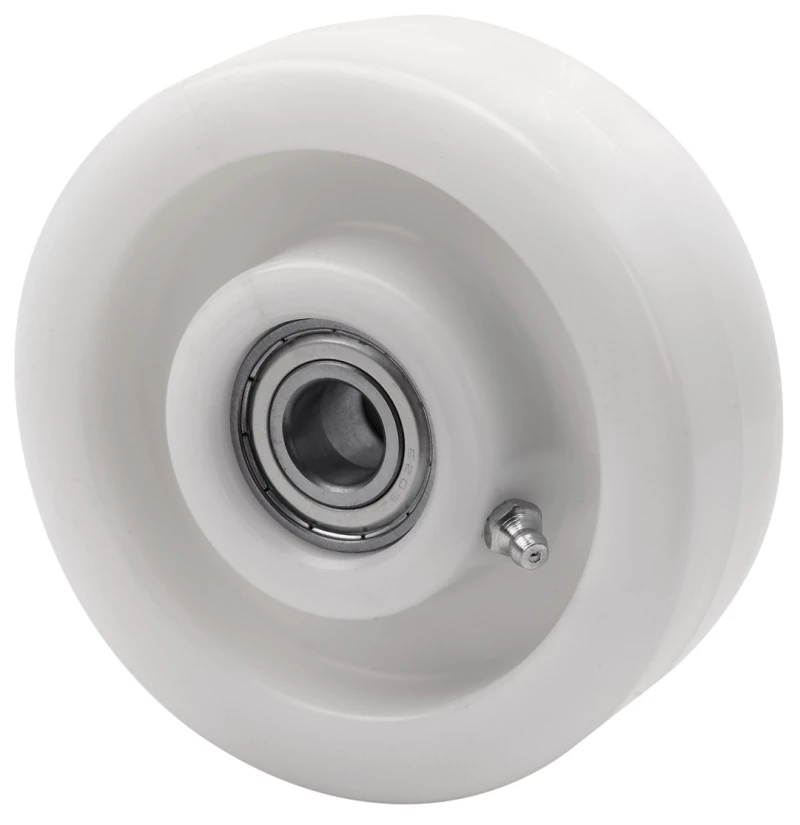

Wheel FT 4-0008

See comparative
Categories
Share
Technical Guide
On-line Catalogue
On-line Catalogue
ES Catalogue
INT Catalogue
Code: 4-0008

Castors especially indicated for chemical and food industry applications.

Does not leave marks on floor.

Reinforced.

High resistance to impacts and collisions.

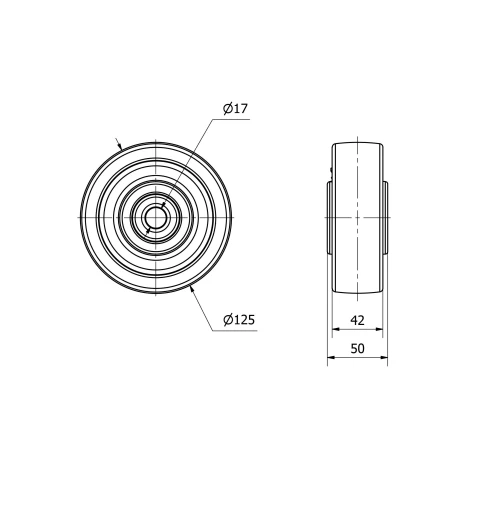

Technical Data 4-0008

EAN:
8422202400082
Housing Type:
Loose ring
Material:
Nylon(Polyamide 6)
Low Temperature (ºC):
-30
Maximum Temperature (ºC):
80
Hardness of tread:
75º SHORE D
Bearing:
Ball
Color:
White
Diameter (mm):
125
Width of tyre (mm):
42
Axle Hole:
17
Lenght Of Hub:
50
Load:
600
Unit Weight of the wheel (kg):
0,52
Volume (cm3):
781
Threadguards:
4-1189
Technical Data 4-0008

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
