Code: 4-0009

Castors especially indicated for chemical and food industry applications.

Does not leave marks on floor.

Reinforced.

High resistance to impacts and collisions.

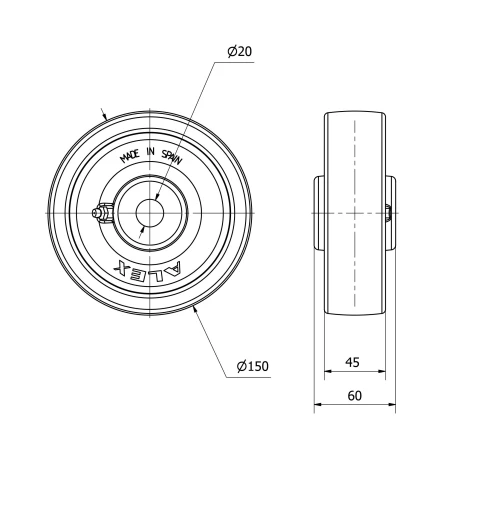

Technical Data 4-0009

EAN:
8422202400099
Housing Type:
Loose ring
Material:
Nylon(Polyamide 6)
Low Temperature (ºC):
-30
Maximum Temperature (ºC):
80
Hardness of tread:
75º SHORE D
Bearing:
Plain
Color:
White
Diameter (mm):
150
Width of tyre (mm):
45
Axle Hole:
20
Lenght Of Hub:
60
Load:
900
Unit Weight of the wheel (kg):
0,58
Volume (cm3):
1350
Threadguards:
4-1190
Technical Data 4-0009
