Which castors do you need?
Wheel FT 4-0016
EAN 8422202400167
Castors especially indicated for chemical and food industry applications.
Does not leave marks on floor.
Reinforced.
High resistance to impacts and collisions.

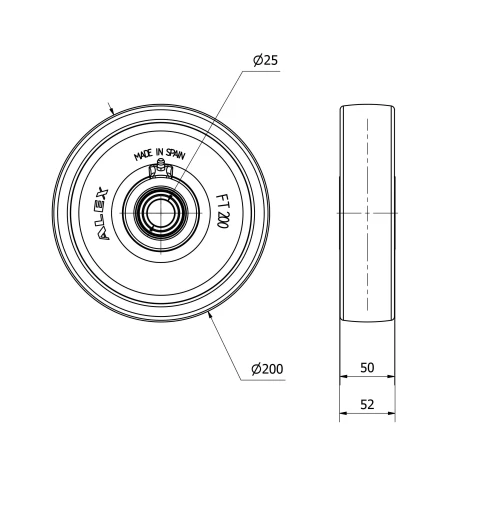

Technical Data
Housing Type | Loose ring |
---|---|
Material | Nylon(Polyamide 6) |
Low Temperature (ºC) | -30 |
Maximum Temperature (ºC) | 80 |
Bearing | Ball |
Color | White |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Axle Hole | 25 |
Lenght Of Hub | 52 |
Load | 1000 |
Unit Weight of the wheel (kg) | 1.077 |
Volume (cm3) | 2080 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
