Which castors do you need?
Wheel TN 2-0069
EAN 8422202200699
Robust and resistant.
Undeformable, easy to move wiht high-loads.
Does not leave marks on floor.
Especially indicated for industial sectors.

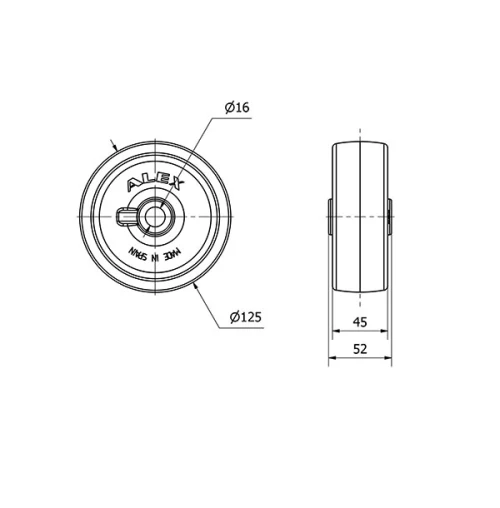

Technical Data
Housing Type | Loose ring |
---|---|
Material | Nylon(Polyamide 6) |
Low Temperature (ºC) | -30 |
Maximum Temperature (ºC) | 80 |
Bearing | Plain |
Color | White |
Diameter (mm) | 125 |
Width of tyre (mm) | 45 |
Axle Hole | 16 |
Lenght Of Hub | 52 |
Load | 350 |
Unit Weight of the wheel (kg) | 0.268 |
Volume (cm3) | 812 |
Threadguards | 2-0825 |
