Wheel TN 2-0164
EAN 8422202201641
Robust and resistant.
Undeformable, easy to move wiht high-loads.
Does not leave marks on floor.
Especially indicated for industial sectors.

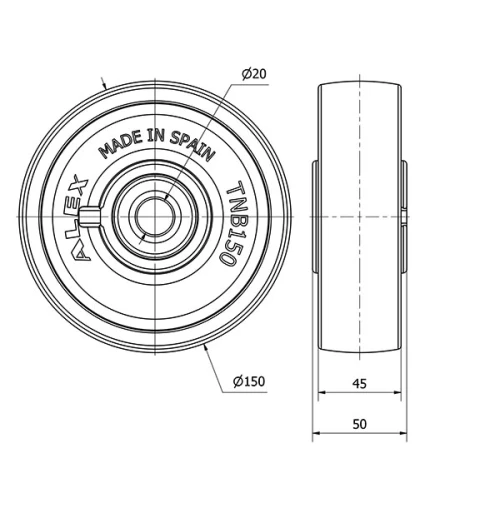

Technical Data
Housing Type | Loose ring |
---|---|
Material | Nylon(Polyamide 6) |
Low Temperature (ºC) | -30 |
Maximum Temperature (ºC) | 80 |
Bearing | Ball |
Color | White |
Diameter (mm) | 150 |
Width of tyre (mm) | 45 |
Axle Hole | 20 |
Lenght Of Hub | 50 |
Load | 650 |
Unit Weight of the wheel (kg) | 0.61 |
Volume (cm3) | 1148 |
Threadguards | 2-0826 |
