Which castors do you need?

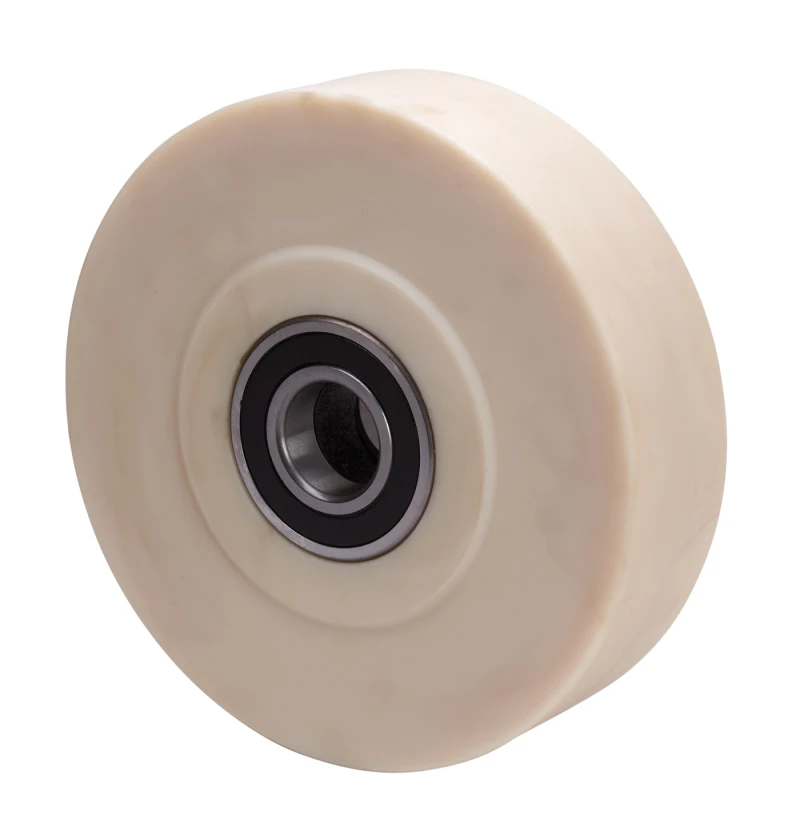

Wheel NF 2-3601
EAN 8422202236018
Extra heavy duty castors.
High resistance to impacts and collisions.
Extra heavy.
Low resistance to traction.

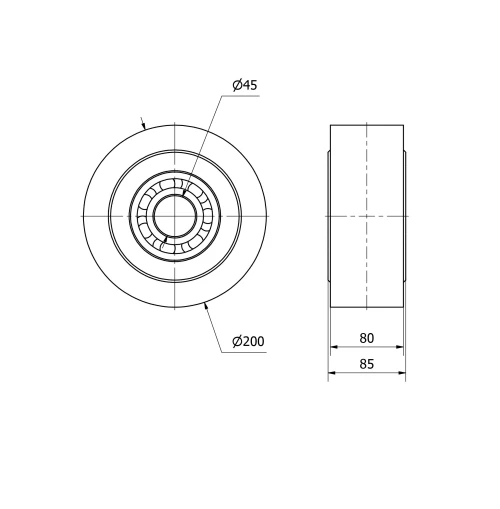

Technical Data
Housing Type | Loose ring |
---|---|
Material | Nylon(Polyamide 6) |
Low Temperature (ºC) | -30 |
Maximum Temperature (ºC) | 80 |
Bearing | Ball |
Color | White |
Diameter (mm) | 200 |
Width of tyre (mm) | 80 |
Axle Hole | 45 |
Lenght Of Hub | 85 |
Load | 4500 |
Unit Weight of the wheel (kg) | 4.165 |
Volume (cm3) | 3400 |
