Which castors do you need?
Wheel TN 2-0176
EAN 8422202201764
Robust and resistant.
Undeformable, easy to move wiht high-loads.
Does not leave marks on floor.
Especially indicated for industial sectors.

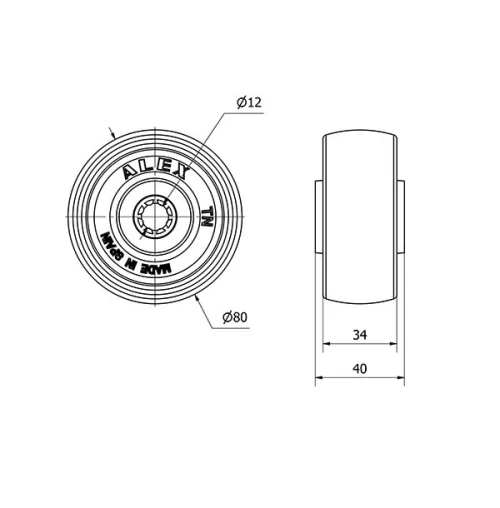

Technical Data
Housing Type | Loose ring |
---|---|
Material | Nylon(Polyamide 6) |
Low Temperature (ºC) | -30 |
Maximum Temperature (ºC) | 80 |
Bearing | Stainless Steel Roller Bearing |
Color | White |
Diameter (mm) | 80 |
Width of tyre (mm) | 34 |
Axle Hole | 12 |
Lenght Of Hub | 41 |
Load | 250 |
Unit Weight of the wheel (kg) | 0.14 |
Volume (cm3) | 262 |
Threadguards | 4-1187 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
