Code: 2-0121

Robust and resistant.

Undeformable, easy to move wiht high-loads.

Does not leave marks on floor.

Especially indicated for industial sectors.

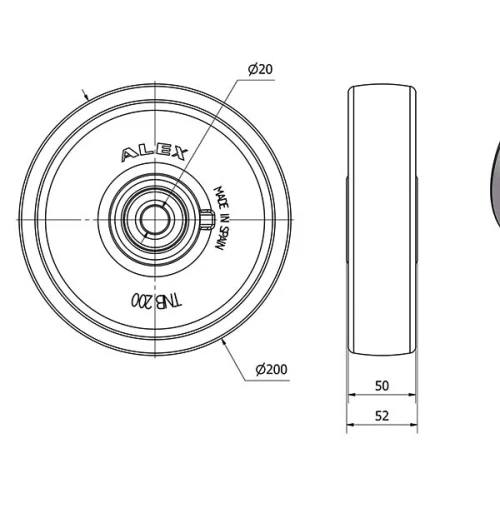

Technical Data 2-0121

EAN:
8422202201214
Housing Type:
Loose ring
Material:
Nylon(Polyamide 6)
Low Temperature (ºC):
-30
Maximum Temperature (ºC):
80
Hardness of tread:
75º SHORE D
Bearing:
Stainless Steel Balls
Color:
White
Diameter (mm):
200
Width of tyre (mm):
50
Axle Hole:
20
Lenght Of Hub:
52
Load:
750
Volume (cm3):
2120
Technical Data 2-0121

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
