Code: 1-0314

LIght and resistant.

Ideal load capacity.

Indicated for floors with carpets or rugs.

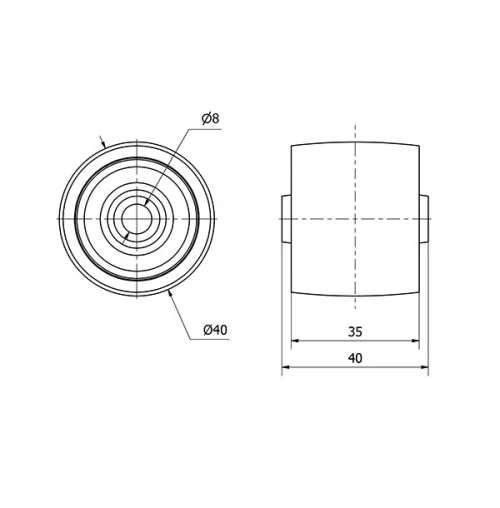

Technical Data 1-0314

EAN:
8422202103143
Housing Type:
Loose ring
Material:
Polypropylene
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
65º SHORE D
Bearing:
Plain
Color:
White
Diameter (mm):
40
Width of tyre (mm):
35
Axle Hole:
8
Lenght Of Hub:
34
Load:
45
Unit Weight of the wheel (kg):
0,026
Volume (cm3):
64
Technical Data 1-0314
