Which castors do you need?
Wheel TD 2-0063
EAN 8422202200637
Reinforced resine castor.
Indicated for industrial industry.

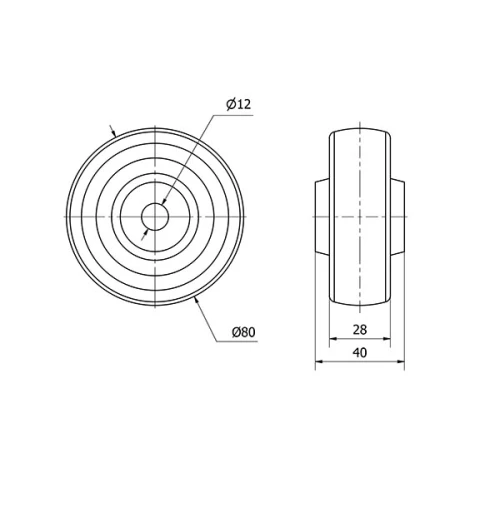

Technical Data
Housing Type | Loose ring |
---|---|
Material | Phenolic Resin Wheel |
Low Temperature (ºC) | -40 |
Maximum Temperature (ºC) | 200 |
Bearing | Plain |
Color | Red |
Diameter (mm) | 80 |
Width of tyre (mm) | 28 |
Axle Hole | 12 |
Lenght Of Hub | 40 |
Load | 280 |
Unit Weight of the wheel (kg) | 0.159 |
Volume (cm3) | 262 |
Threadguards | 2-0816 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
