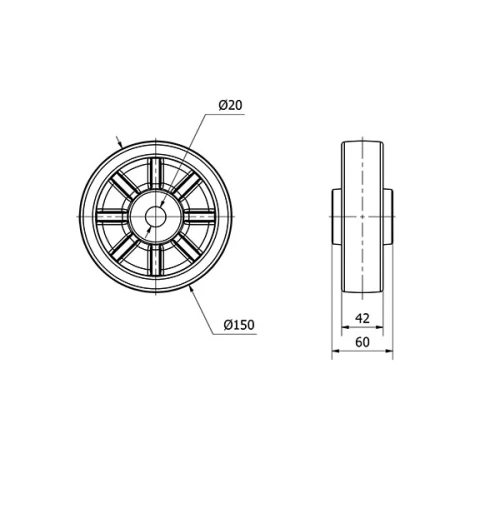

CAD

Which castors do you need?

Wheel TD 2-0066

See comparative

Code: 2-0066

Reinforced resine castor.

Indicated for industrial industry.

Technical Data 2-0066

EAN:

8422202200668

Housing Type:

Loose ring

Material:

Phenolic Resin Wheel

Low Temperature (ºC):

-40

Maximum Temperature (ºC):

200

Hardness of tread:

75º SHORE D

Bearing:

Plain

Color:

Red

Diameter (mm):

150

Width of tyre (mm):

42

Axle Hole:

20

Lenght Of Hub:

60

Load:

750

Unit Weight of the wheel (kg):

0,629

Volume (cm³):

1350

Technical Data 2-0066

Private area

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
