Which castors do you need?

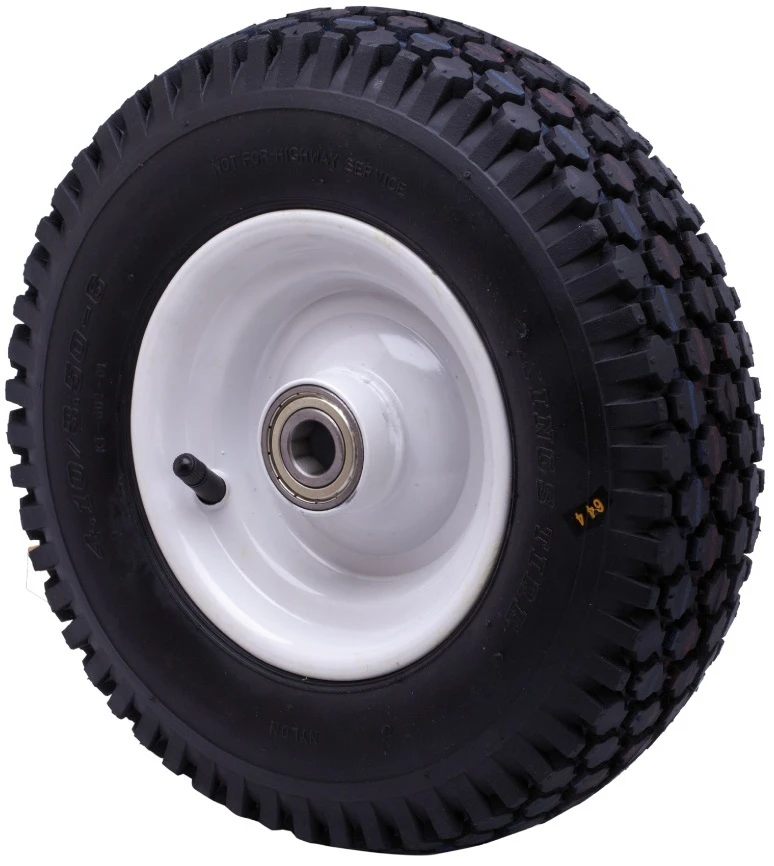

RIT Wheels 4-1241

See comparative

Code: 4-1241

Pneumatic.

Noiseless.

Proper shock absorption.

4 or 6 ply-rating, depending on the model.

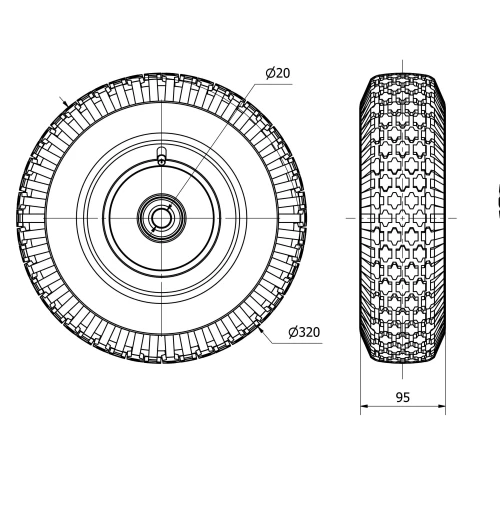

Technical Data 4-1241

EAN:

8422202412412

Housing Type:

Loose ring

Material:

Pneumatic Wheel

Kg Inflation Pressure:

3,5

Bearing:

Ball

Color:

Black

Diameter (mm):

320

Width of tyre (mm):

95

Axle Hole:

20

Lenght Of Hub:

75

Load:

250

Unit Weight of the wheel (kg):

2,455

Volume (cm³):

9728

Ply-Rating:

4 Ply-Rating

Technical Data 4-1241

Private area

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
