Code: 4-0036

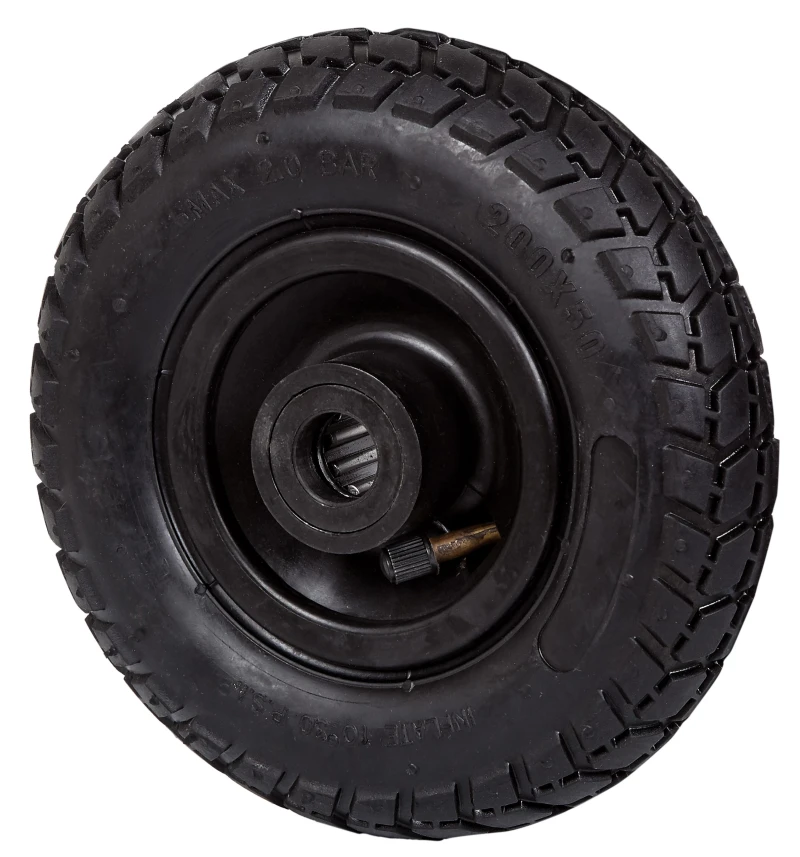

Quiet-running, providing excellent shock absorption.

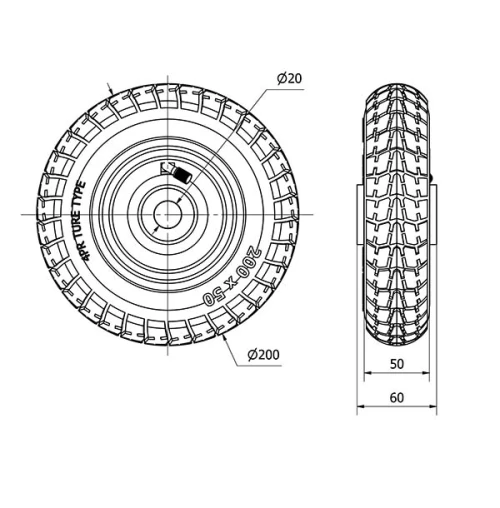

Technical Data 4-0036

EAN:
8422202400365
Housing Type:
Loose ring
Ply-Rating:
4 Ply Rating
Material:
Pneumatic Wheel
Kg Inflation Pressure:
2
Bearing:
Roller
Color:
Black
Diameter (mm):
200
Width of tyre (mm):
50
Plate dimensions (mm):
140x110
Distance between holes (mm):
110x84/98x66
Axle Hole:
20
Lenght Of Hub:
60
Offset (mm):
153
Overall height (mm):
242
Load:
100
Diameter Attribute:
neumática
Ply-Rating:
4 Ply-Rating
Technical Data 4-0036
