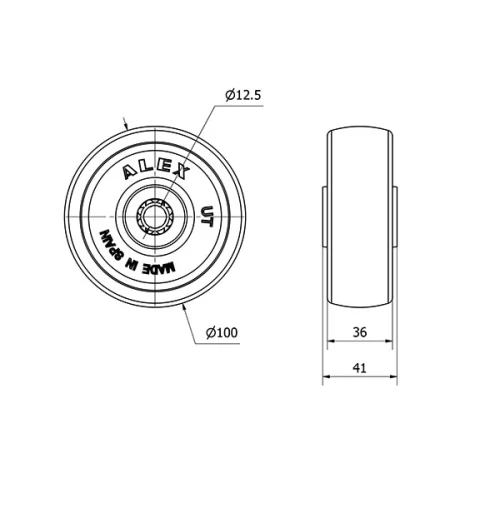

CAD

Which castors do you need?

Wheel UT 2-2455

See comparative

Code: 2-2455

Undeformable and resistant.

Easy to start and move.

Technical Data 2-2455

EAN:

8422202224558

Housing Type:

Loose ring

Material:

Polypropylene

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

60

Hardness of tread:

60º SHORE D

Bearing:

Roller

Color:

White

Diameter (mm):

100

Width of tyre (mm):

36

Axle Hole:

12

Lenght Of Hub:

40

Load:

220

Unit Weight of the wheel (kg):

0,149

Volume (cm³):

400

Threadguards:

4-0292

Technical Data 2-2455

Private area

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
