Code: 2-2806

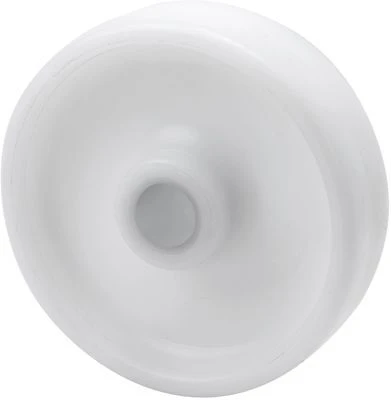

White Polypropylene wheels.Wheel Bearings: plain bearing, ball bearing, roller bearing. Temperature range: -20º C to +60º C.

Technical Data 2-2806

EAN:
8422202228068
Housing Type:
Loose ring
Material:
Polypropylene
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
65º SHORE D
Bearing:
Plain
Color:
White
Diameter (mm):
100
Width of tyre (mm):
32
Axle Hole:
12
Lenght Of Hub:
40
Load:
250
Unit Weight of the wheel (kg):
0,12
Volume (cm3):
400
