Code: 2-4531

Undeformable.

Light.

Impact-resistant.

Electrically conductive

Available with a bracket. Please contact us for more information.

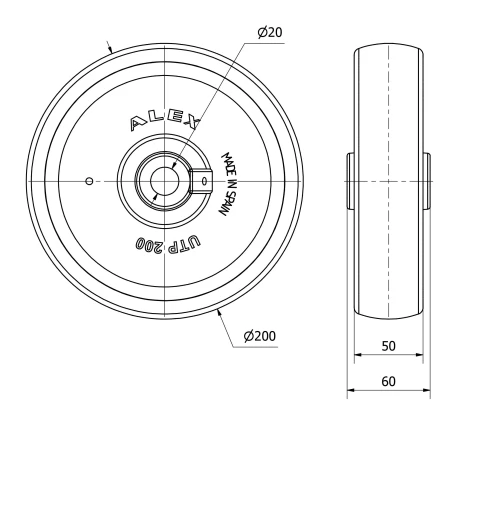

Technical Data 2-4531

EAN:
8422202245317
Housing Type:
Loose ring
Material:
Polypropylene
Low Temperature (ºC):
-20
Maximum Temperature (ºC):
60
Hardness of tread:
65º SHORE D
Bearing:
Plain
Color:
Black
Diameter (mm):
200
Width of tyre (mm):
50
Axle Hole:
20
Lenght Of Hub:
60
Load:
500
Technical Data 2-4531

Private area

Regístrate
Download in 3D formats
Catia
Iges
Inventor
Parasolid
Proengineer
Step AP203
Download in 2D formats
DWG
Download PDF
PDF
