Wheel KN 4-1307
EAN 8422202413075
Reinforce polyamide roller. Colour: white. Wheel Bearings: ball bearing. Temperature range: -20º C to +80º C.

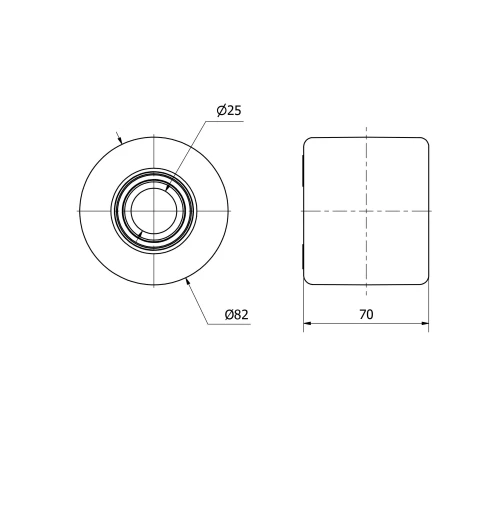

Technical Data
Housing Type | Loose ring |
---|---|
Material | Nylon(Polyamide 6) |
Low Temperature (ºC) | -30 |
Maximum Temperature (ºC) | 80 |
Bearing | Ball |
Color | White |
Diameter (mm) | 82 |
Width of tyre (mm) | 70 |
Axle Hole | 25 |
Lenght Of Hub | 70 |
Load | 700 |
Unit Weight of the wheel (kg) | 0.507 |
Volume (cm3) | 471 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
