Wheel VN 2-4666
EAN 8422202246666
Polyurethane tyre on pressed steel centre. Colours: orange. Ball bearing. Temperature range: -20º C to +60º C.

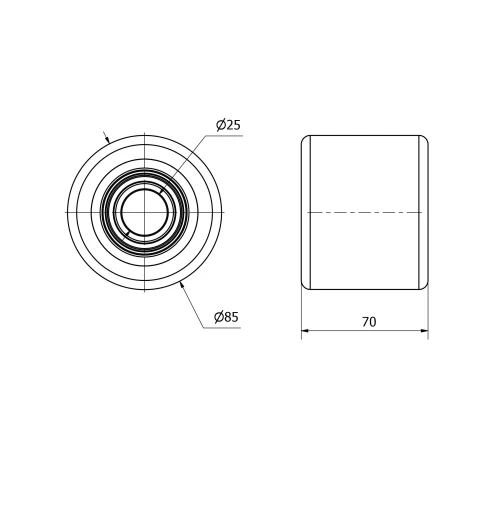

Technical Data
Housing Type | Loose ring |
---|---|
Material | Polyurethane |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 60 |
Bearing | Ball |
Color | Orange |
Diameter (mm) | 85 |
Width of tyre (mm) | 70 |
Axle Hole | 25 |
Lenght Of Hub | 70 |
Load | 700 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
