Which castors do you need?

SERIE BH-BP

Categories

White polypropylene castors. Especially indicated to support high-loads up to 80 Kg.

It is used in: display stands, furniture, stackable boxes, display cabinets, clothes racks, catering carts and housekeeping carts.

BP: undeformable and resistant. Easy to start and move.

See comparative

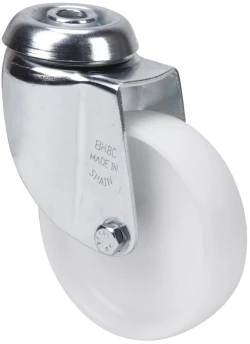

BH SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
1-0166 60 50 25 Bearing: Plain 70x55 54x38 6 88 62
2-1911 80 70 25 Bearing: Plain 70x55 54x38 6 112 77
1-0221 100 80 25 Bearing: Plain 70x55 54x38 7 134 90

BH SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
1-0181 60 50 24 Bearing: Plain 75x66 54x38 6 88 62
2-2457 80 70 24 Bearing: Plain 75x66 54x38 6 112 --
2-2458 100 80 25 Bearing: Plain 75x66 54x38 6 134 --

BH SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4478 60 50 24 Bearing: Plain 70x55 54x38 6 88 62
2-1912 80 70 24 Bearing: Plain 70x55 54x38 6 112 77
2-1915 100 80 25 Bearing: Plain 70x55 54x38 6 134 90

BH SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
1-0174 60 50 25 Bearing: Plain -- -- 10 85 62
2-1913 80 70 25 Bearing: Plain -- -- 10 108 77
1-0222 100 80 25 Bearing: Plain -- -- 10 130 90

BH SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4479 60 50 24 Bearing: Plain -- -- 10 85 62
2-1914 80 70 24 Bearing: Plain -- -- 10 108 77
2-1916 100 80 25 Bearing: Plain -- -- 10 130 90

BH SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
1-0177 60 50 24 Bearing: Plain 40x40 -- -- 87 62
2-1919 80 70 24 Bearing: Plain 40x40 -- -- 108 77

BH SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4633 60 50 24 Bearing: Plain 40x40 -- -- 87 62
2-1920 80 70 24 Bearing: Plain 40x40 -- -- 108 77

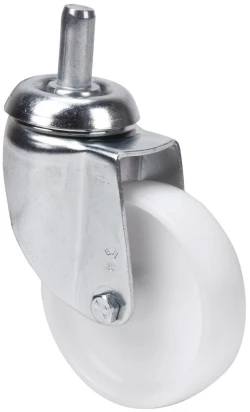

BH SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
2-1488 60 50 25 Bearing: Plain -- -- 12x30 85 62
2-1921 80 70 25 Bearing: Plain -- -- 12x30 108 77

BH SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
2-4634 60 50 24 Bearing: Plain -- -- 12x30 85 62
2-1922 80 70 24 Bearing: Plain -- -- 12x30 108 77

Other castors SERIE BH

SERIE BH-PPI
SERIE BH-PPI
Diametro 60-100 mm
Carga 50-80 kg
SERIE BH-PGI
SERIE BH-PGI
Diametro 60-100 mm
Carga 40-70 kg
SERIE BH-PGI BLACK
SERIE BH-PGI BLACK
Novedad
Diametro 60-80 mm
Carga 40-60 kg
SERIE BH-PGIB
SERIE BH-PGIB
Diametro 80-100 mm
Carga 70-80 kg
