Which castors do you need?

SERIE BH-PPI

Categories

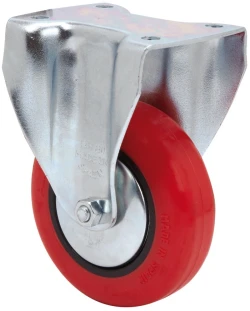

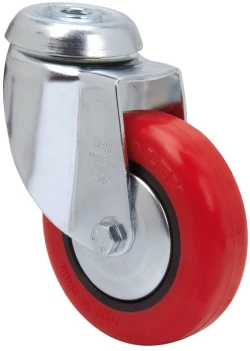

Red injected polyurethane castors. Especially indicated to support high-loads up to 80 Kg.

It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, clinical furniture, and drips.

PPI: noiseless and undeformable. Easy to move with load.

See comparative

BH SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-2522 60 50 22 Bearing: Plain 70x55 54x38 6 88 62
2-2461 80 70 24 Bearing: Plain 70x55 54x38 6 112 77
2-2462 100 80 25 Bearing: Plain 70x55 54x38 6 134 90

BH SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4338 60 50 22 Bearing: Plain 75x66 54X38 6 88 --
2-2473 80 70 24 Bearing: Plain 75x66 54x38 6 112 --
2-2474 100 80 25 Bearing: Plain 75x66 54x38 6 134 --

BH SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4476 60 50 22 Bearing: Plain 70x55 54x38 6 88 62
2-2464 80 70 24 Bearing: Plain 70x55 54x38 6 112 77
2-2465 100 80 25 Bearing: Plain 70x55 54x38 6 134 90

BH SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-2525 60 50 22 Bearing: Plain -- -- 10 85 62
2-2467 80 70 24 Bearing: Plain -- -- 10 108 77
2-2468 100 80 25 Bearing: Plain -- -- 10 130 90

BH SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4477 60 50 22 Bearing: Plain -- -- 10 85 62
2-2470 80 70 24 Bearing: Plain -- -- 10 108 77
2-2471 100 80 25 Bearing: Plain -- -- 10 130 90

Other castors SERIE BH

SERIE BH-BP
SERIE BH-BP
Diametro 60-100 mm
Carga 50-80 kg
SERIE BH-PGI
SERIE BH-PGI
Diametro 60-100 mm
Carga 40-70 kg
SERIE BH-PGI BLACK
SERIE BH-PGI BLACK
Novedad
Diametro 60-80 mm
Carga 40-60 kg
SERIE BH-PGIB
SERIE BH-PGIB
Diametro 80-100 mm
Carga 70-80 kg
