BH SERIES-PPI 2-2462

See comparative

Code: 2-2462

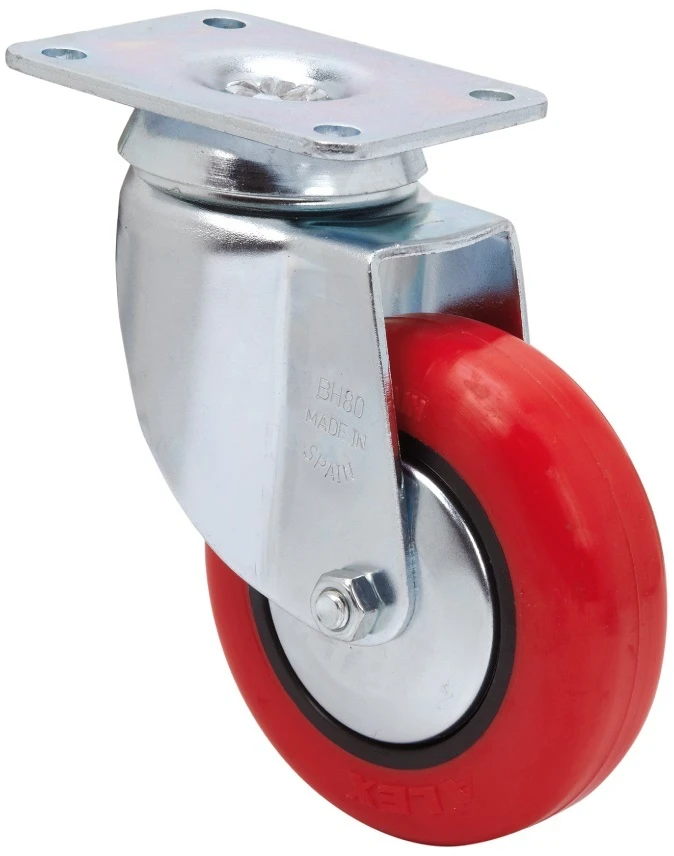

Red injected polyurethane castors. Especially indicated to support high-loads up to 80 Kg.

It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, clinical furniture, and drips.

PPI: noiseless and undeformable. Easy to move with load.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: zinc-plated.Double ball bearing swivel head.Manufactured to European standards EN 12530.

Wheel

Red polyurethane tyre on black polypropylene centre. 95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Very Good

Floor Protection Very Good

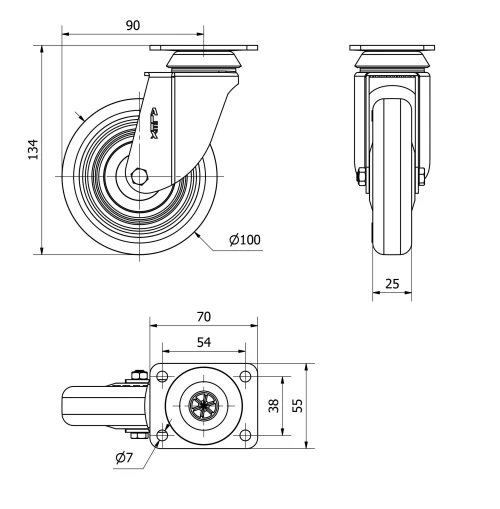

Technical Data 2-2462

EAN:

8422202224626

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

60º SHORE D

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

70x55

Distance between holes (mm):

54x38

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

134

Load:

Unit Weight of the wheel (kg):

0,48

Volume (cm³):

921
