Which castors do you need?

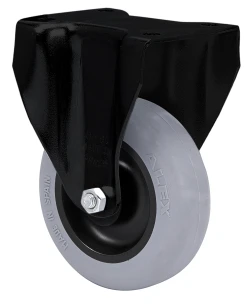

SERIE BH-PGI BLACK

Categories

Injected grey rubber castors. Especially indicated to support loads up to 60 Kg.

Made from sheet steel up to 2 mm thick, painted black.

It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, clinical furniture and drips.

PGI: does not scratch or leave marks on floor. Noiseless.

See comparative

BH SERIES-PGI BLACK

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-5140 60 40 22 Bearing: Plain 70x55 54x38 6 88 62
New
2-5145 80 60 24 Bearing: Plain 70x55 54x38 6 112 77
New

BH SERIES-PGI BLACK

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-5141 60 40 22 Bearing: Plain 75x66 54x38 6 88 --
New
2-5146 80 60 24 Bearing: Plain 75x66 54x38 6 112 --
New

BH SERIES-PGI BLACK

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-5142 60 40 22 Bearing: Plain 70x55 54x38 6 88 62
New
2-5147 80 60 24 Bearing: Plain 70x55 54x38 6 112 77
New

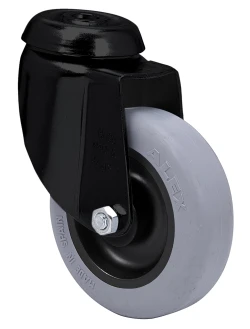

BH SERIES-PGI BLACK

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-5143 60 40 22 Bearing: Plain -- -- 10 85 62
New
2-5148 80 60 24 Bearing: Plain -- -- 10 108 77
New

BH SERIES-PGI BLACK

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-5144 60 40 22 Bearing: Plain -- -- 10 85 62
New
2-5149 80 60 24 Bearing: Plain -- -- 10 108 77
New

Other castors SERIE BH

SERIE BH-PPI
SERIE BH-PPI
Diametro 60-100 mm
Carga 50-80 kg
SERIE BH-BP
SERIE BH-BP
Diametro 60-100 mm
Carga 50-80 kg
SERIE BH-PGI
SERIE BH-PGI
Diametro 60-100 mm
Carga 40-70 kg
SERIE BH-PGIB
SERIE BH-PGIB
Diametro 80-100 mm
Carga 70-80 kg
