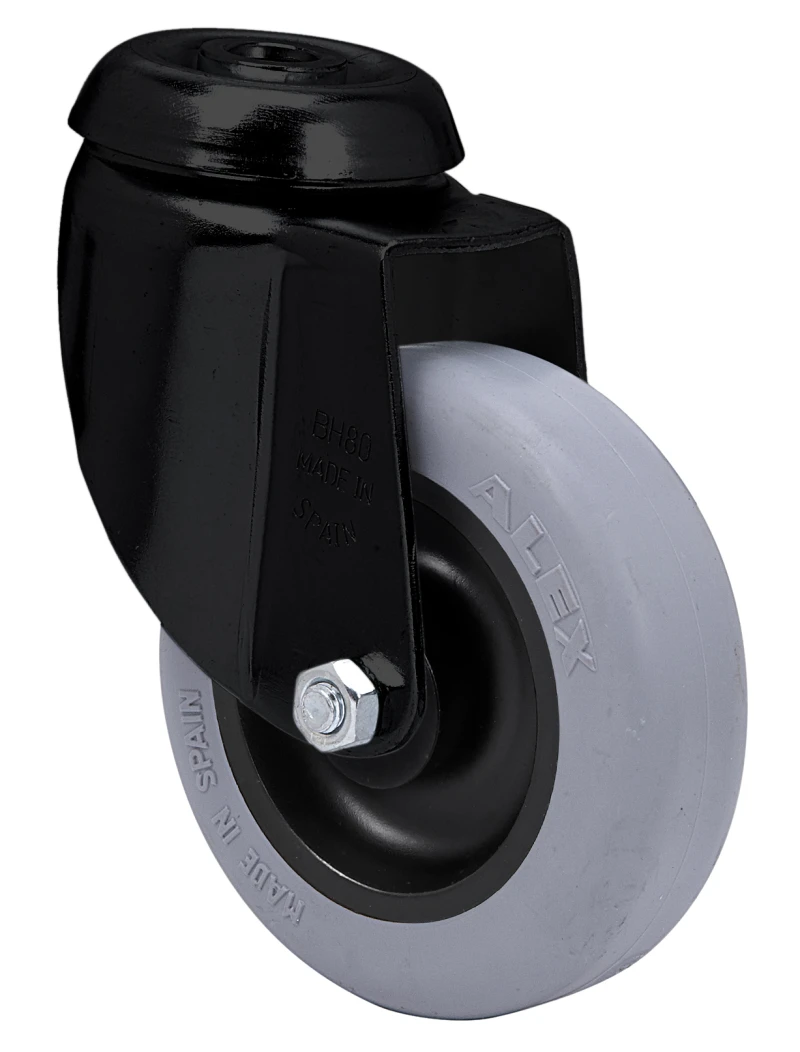

BH SERIES-PGI BLACK 2-5143

See comparative

Code: 2-5143

Injected grey rubber castors. Especially indicated to support loads up to 60 Kg.

Made from sheet steel up to 2 mm thick, painted black.

It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, clinical furniture and drips.

PGI: does not scratch or leave marks on floor. Noiseless.

Components

Brackets

Made from sheet steel up to 2 mm thick, painted black. Double ball bearing swivel head. Manufactured to European standards EN 12528/12530.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

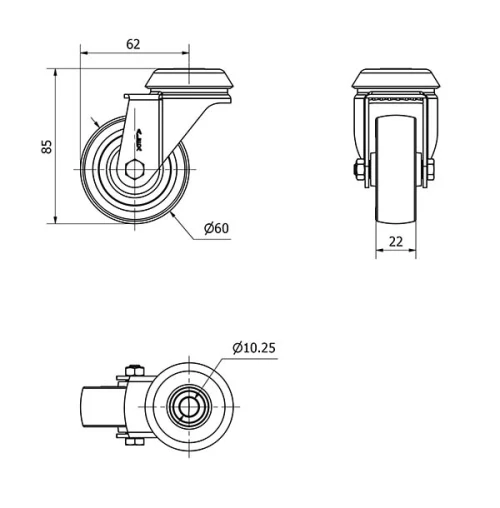

Technical Data 2-5143

EAN:

8422202251431

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

90º SHORE A

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,235

Volume (cm³):

360
