Which castors do you need?
EAN 8422202224671
Red injected polyurethane castors. Especially indicated to support high-loads up to 100 Kg.
It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, clinical furniture, and drips.
PPI: noiseless and undeformable. Easy to move with load.
| Housing Type | Swivel |
|---|---|
| Fitting Type | Bolt hole |
| Braking System | Without Brake |
| Material | Polyurethane |
| Bearing | Plain |

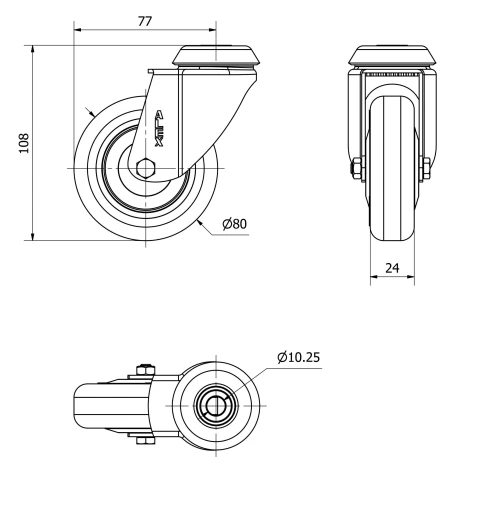

| Diameter (mm) | 80 |
| Width of tyre (mm) | 24 |
| Plate hole diameter (mm) | 10 |
| Offset (mm) | 77 |
| Overall height (mm) | 108 |
| Load | 70 |
| Unit Weight of the wheel (kg) | 0.335 |
| Volume (cm3) | 537 |
Made of pressed steel up to 2 mm. Finish: zinc-plated.Double ball bearing swivel head.Manufactured to European standards EN 12530.
Red polyurethane tyre on black polypropylene centre. 95º shore A
Temperature range: -25º ÷ +80º
Rolling Resistence Very Good
Noise during the march Very Good
Floor Protection Very Good
