BH SERIES-BP 1-0177

See comparative

Code: 1-0177

White polypropylene castors. Especially indicated to support high-loads up to 80 Kg.

It is used in: display stands, furniture, stackable boxes, display cabinets, clothes racks, catering carts and housekeeping carts.

BP: undeformable and resistant. Easy to start and move.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.

Wheel

Grey polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

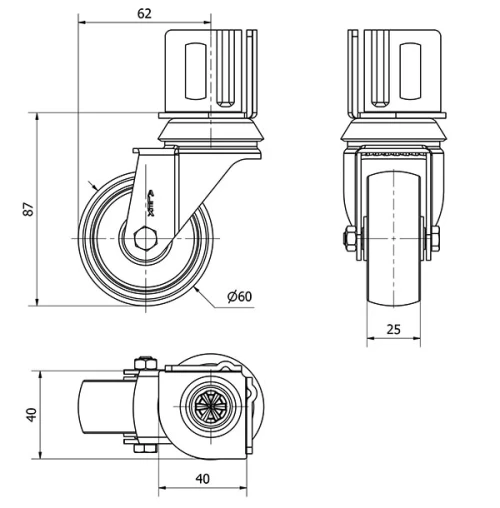

Technical Data 1-0177

EAN:

8422202101774

Housing Type:

Swivel

Fitting Type:

For corners

Braking System:

Without Brake

Material:

Plastic Polypropylene

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

65º SHORE D

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

40x40

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,321

Volume (cm³):

543
