Which castors do you need?

SERIE BHA-PPI

Categories

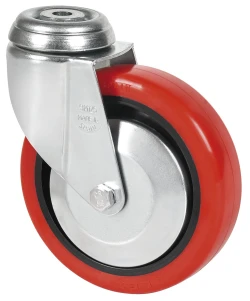

Injected polyurethane castors. Especially designed to support loads up to 100 kg.

Used in food trolleys, kitchens, canteens, dining halls, restaurants, food factories, supermarkets, cleaning trolleys, beds.

PPI Wheel: Noiseless, multipurpose, easy rolling.

See comparative

BHA SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4674 100 90 32 Bearing: Plain 80x70 60x50 8 132 87
2-2463 125 100 32 Bearing: Plain 80x70 60x50 8 163 105

BHA SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4675 100 90 32 Bearing: Plain 80x70 60x50 8 132 87
2-2466 125 100 32 Bearing: Plain 80x70 60x50 8 163 105

BHA SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4676 100 90 32 Bearing: Plain -- -- 10 129 87
2-4678 100 90 32 Bearing: Plain -- -- 12 129 87
2-2469 125 100 32 Bearing: Plain -- -- 10 160 105
2-4772 125 100 32 Bearing: Plain -- -- 12 160 105

BHA SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4677 100 90 32 Bearing: Plain -- -- 10 129 87
2-4679 100 90 32 Bearing: Plain -- -- 12 129 87
2-2472 125 100 32 Bearing: Plain -- -- 10 160 105
2-4773 125 100 32 Bearing: Plain -- -- 12 160 105

Other castors SERIE BHA

SERIE BHA-PGA
SERIE BHA-PGA
Diametro 100-125 mm
Carga 90-100 kg
SERIE BHA-PGAIB
SERIE BHA-PGAIB
Diametro 100-125 mm
Carga 90-100 kg
SERIE BHA-PGAIB (AH PEQ)
SERIE BHA-PGAIB (AH PEQ)
Novedad
Diametro 100-125 mm
Carga 90-100 kg
SERIE BHA-PGZ
SERIE BHA-PGZ
Diametro 100-125 mm
Carga 90-100 kg
SERIE BHA-PGC
SERIE BHA-PGC
Diametro 100-125 mm
Carga 90-100 kg
SERIE BHA-PGC (AH PEQ)
SERIE BHA-PGC (AH PEQ)
Novedad
Diametro 100-125 mm
Carga 90-100 kg
SERIE BHA-UT
SERIE BHA-UT
Diametro 100-125 mm
Carga 90-100 kg
