Which castors do you need?

SERIE BHA-UT

Categories

White polypropylene castors. Especially designed to support loads up to 100 kg.

Used in food trolleys, kitchens, canteens, dining halls, restaurants, food factories, supermarkets, cleaning trolleys, beds.

UT: Impact-resistant and undeformable. Easy start and rolling .

See comparative

BHA-SERIES-UT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4764 100 90 36 Bearing: Plain 80x70 60x50 8 132 87
2-4796 100 90 36 Bearing: Roller 80x70 60x50 8 132 87
2-1432 125 100 36 Bearing: Plain 80x70 60x50 8 163 105
2-4802 125 100 36 Bearing: Roller 80x70 60x50 8 163 105

BHA-SERIES-UT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4765 100 90 34 Bearing: Plain 80x70 60x50 8 132 87
2-4797 100 90 34 Bearing: Roller 80x70 60x50 8 132 87
2-1917 125 100 35 Bearing: Plain 80x70 60x50 8 163 105
2-4803 125 100 35 Bearing: Roller 80x70 60x50 8 163 105

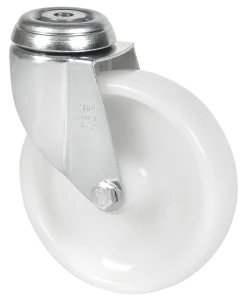

BHA-SERIES-UT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4766 100 90 34 Bearing: Plain -- -- 10 129 87
2-4768 100 90 34 Bearing: Plain -- -- 12 129 87
2-4798 100 90 34 Bearing: Roller -- -- 10 129 87
2-4800 100 90 34 Bearing: Roller -- -- 12 129 87
2-1433 125 100 35 Bearing: Plain -- -- 10 160 105
2-4770 125 100 35 Bearing: Plain -- -- 12 160 105
2-4804 125 100 35 Bearing: Roller -- -- 10 160 105
2-4806 125 100 35 Bearing: Roller -- -- 12 160 105

BHA-SERIES-UT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4767 100 90 34 Bearing: Plain -- -- 10 129 87
2-4769 100 90 34 Bearing: Plain -- -- 12 129 87
2-4799 100 90 34 Bearing: Roller -- -- 10 129 87
2-4801 100 90 34 Bearing: Roller -- -- 12 129 87
2-1918 125 100 35 Bearing: Plain -- -- 10 160 105
2-4771 125 100 35 Bearing: Plain -- -- 12 160 105
2-4805 125 100 35 Bearing: Roller -- -- 10 160 105
2-4807 125 100 35 Bearing: Roller -- -- 12 160 105
