SERIE BHA-PGZ

Categories

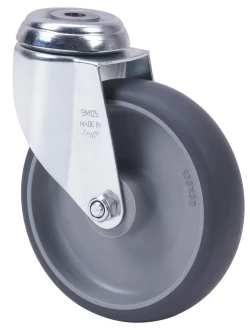

Grey injected rubber castors. Especially indicated to support high-loads up to 90 Kg.

It is used in: food trolleys, kitchens, canteens, dining rooms, restaurants, food industry, supermarkets, housekeeping carts and beds.

PGZ: does not leave marks on floor. Easy to move with load.

See comparative

BHA SERIES-PGZ

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4609 100 90 30 Bearing: Plain 80x70 60x50 8 132 87
2-4617 100 90 30 Bearing: Roller 80x70 60x50 8 132 87
2-3702 125 100 32 Bearing: Plain 80x70 60x50 8 163 105
2-4623 125 100 32 Bearing: Roller 80x70 60x50 8 163 105

BHA SERIES-PGZ

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4610 100 90 30 Bearing: Plain 80x70 60x50 8 132 87
2-4618 100 90 30 Bearing: Roller 80x70 60x50 8 132 87
2-3703 125 100 32 Bearing: Plain 80x70 60x50 8 163 105
2-4624 125 100 32 Bearing: Roller 80x70 60x50 8 163 105

BHA SERIES-PGZ

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4611 100 90 30 Bearing: Plain -- -- 10 129 87
2-4613 100 90 30 Bearing: Plain -- -- 12 129 87
2-4619 100 90 30 Bearing: Roller -- -- 10 129 87
2-4621 100 90 30 Bearing: Roller -- -- 12 129 87
2-3704 125 100 32 Bearing: Plain -- -- 10 160 105
2-4615 125 100 32 Bearing: Plain -- -- 12 160 105
2-4625 125 100 32 Bearing: Roller -- -- 10 160 105
2-4627 125 100 32 Bearing: Roller -- -- 12 160 105

BHA SERIES-PGZ

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4612 100 90 30 Bearing: Plain -- -- 10 129 87
2-4614 100 90 30 Bearing: Plain -- -- 12 129 87
2-4620 100 90 30 Bearing: Roller -- -- 10 129 87
2-4622 100 90 30 Bearing: Roller -- -- 12 129 87
2-3705 125 100 32 Bearing: Plain -- -- 10 160 105
2-4616 125 100 32 Bearing: Plain -- -- 12 160 105
2-4626 125 100 32 Bearing: Roller -- -- 10 160 105
2-4628 125 100 32 Bearing: Roller -- -- 12 160 105
