BHA SERIES-PGZ 2-4615

Code: 2-4615

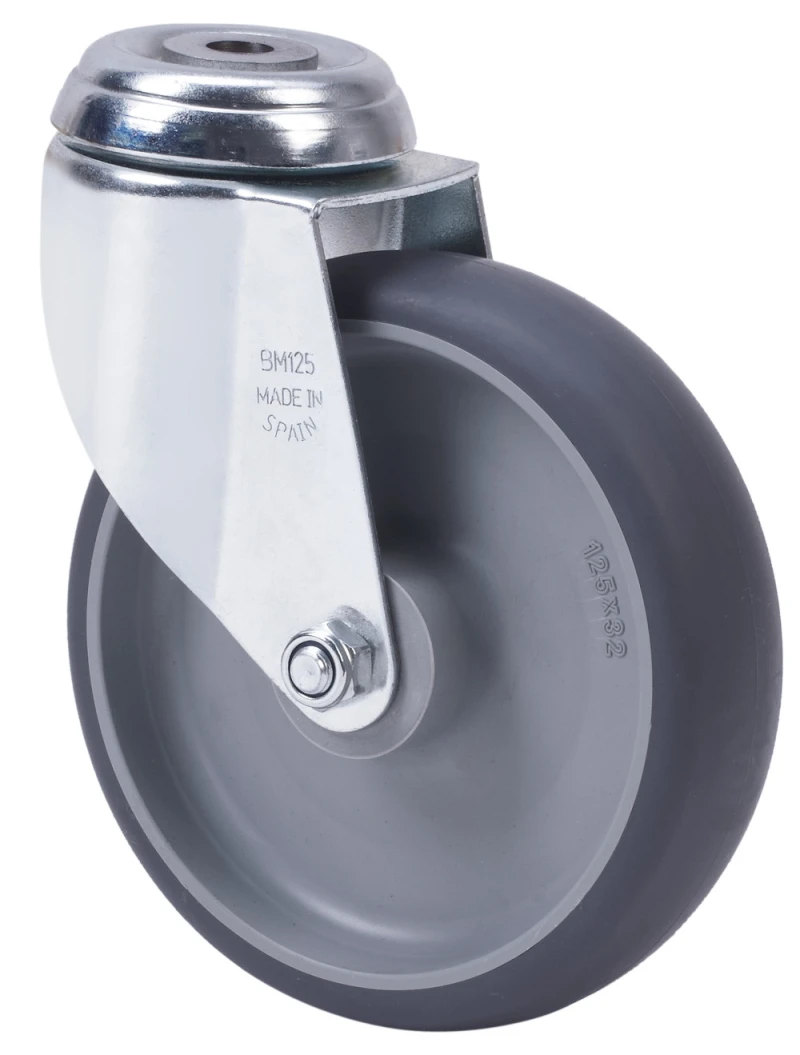

Grey injected rubber castors. Especially indicated to support high-loads up to 90 Kg.

It is used in: food trolleys, kitchens, canteens, dining rooms, restaurants, food industry, supermarkets, housekeeping carts and beds.

PGZ: does not leave marks on floor. Easy to move with load.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.

Wheel

Injected rubber tyre on polypropylene centre

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

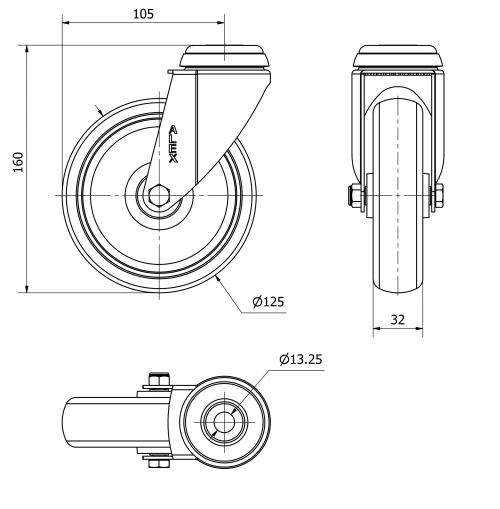

Technical Data 2-4615

EAN:

8422202246154

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Rubber

Bearing:

Plain

Diameter (mm):

125

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

105

Overall height (mm):

160

Load:

100

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-3704

2-3705

2-4616
