Which castors do you need?

SERIE BHA-PGA

Categories

Castors with polyamix centre and grey rubber tyre. Especially indicated to support high-loads up to 90 Kg.

It is used in: canteens, dining rooms, restaurants, supermarkets, food trolleys and beds.

PGA: does not leave marks on floor. Smooth and noiseless castor.

See comparative

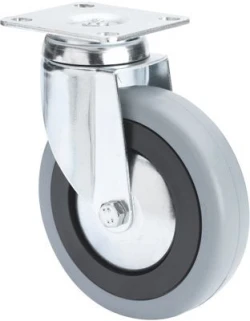

BHA SERIES-PGA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4585 100 90 32 Bearing: Plain 80x70 60x50 8 132 87
2-4593 100 90 32 Bearing: Ball 80x70 60x50 8 132 87
2-1434 125 100 32 Bearing: Plain 80x70 60x50 8 163 105
2-2187 125 100 32 Bearing: Ball 80x70 60x50 8 163 105

BHA SERIES-PGA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-4586 100 90 32 Bearing: Plain 80x70 60x50 8 132 87
2-4594 100 90 32 Bearing: Ball 80x70 60x50 8 132 87
2-1435 125 100 32 Bearing: Plain 80x70 60x50 8 163 105
2-2188 125 100 32 Bearing: Ball 80x70 60x50 8 163 105

BHA SERIES-PGA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4587 100 90 32 Bearing: Plain -- -- 10 129 87
2-4589 100 90 32 Bearing: Plain -- -- 12 129 87
2-4595 100 90 32 Bearing: Ball -- -- 10 129 87
2-4597 100 90 32 Bearing: Ball -- -- 12 129 87
2-1436 125 100 32 Bearing: Plain -- -- 10 160 105
2-4591 125 100 32 Bearing: Plain -- -- 12 160 105
2-2189 125 100 32 Bearing: Ball -- -- 10 160 105
2-4599 125 100 32 Bearing: Ball -- -- 12 160 105

BHA SERIES-PGA

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-4588 100 90 32 Bearing: Plain -- -- 10 129 87
2-4590 100 90 32 Bearing: Plain -- -- 12 129 87
2-4596 100 90 32 Bearing: Ball -- -- 10 129 87
2-4598 100 90 32 Bearing: Ball -- -- 12 129 87
2-1437 125 100 32 Bearing: Plain -- -- 10 160 105
2-4592 125 100 32 Bearing: Plain -- -- 12 160 105
2-2190 125 100 32 Bearing: Ball -- -- 10 160 105
2-4600 125 100 32 Bearing: Ball -- -- 12 160 105

Other castors SERIE BHA

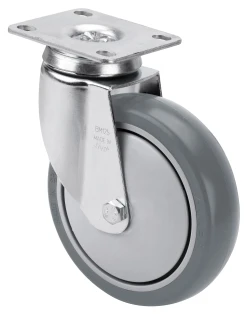

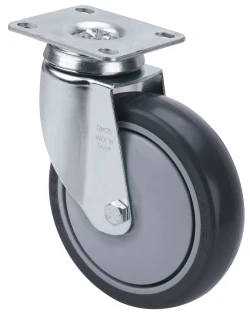

SERIE BHA-PGAIB
SERIE BHA-PGAIB
Diametro 100-125 mm
Carga 90-100 kg

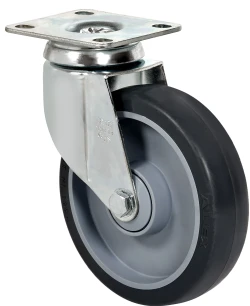

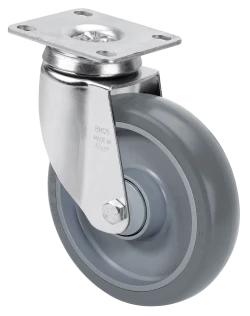

SERIE BHA-PGAIB (AH PEQ)
SERIE BHA-PGAIB (AH PEQ)
Novedad
Diametro 100-125 mm
Carga 90-100 kg
SERIE BHA-PGZ
SERIE BHA-PGZ
Diametro 100-125 mm
Carga 90-100 kg
SERIE BHA-PGC
SERIE BHA-PGC
Diametro 100-125 mm
Carga 90-100 kg

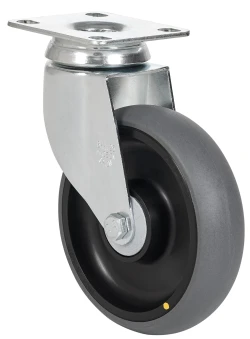

SERIE BHA-PGC (AH PEQ)
SERIE BHA-PGC (AH PEQ)
Novedad
Diametro 100-125 mm
Carga 90-100 kg
SERIE BHA-PPI
SERIE BHA-PPI
Diametro 100-125 mm
Carga 90-100 kg
SERIE BHA-UT
SERIE BHA-UT
Diametro 100-125 mm
Carga 90-100 kg
